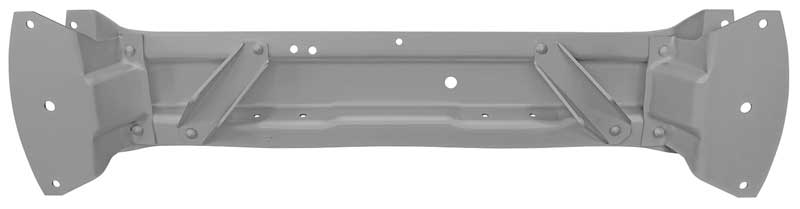

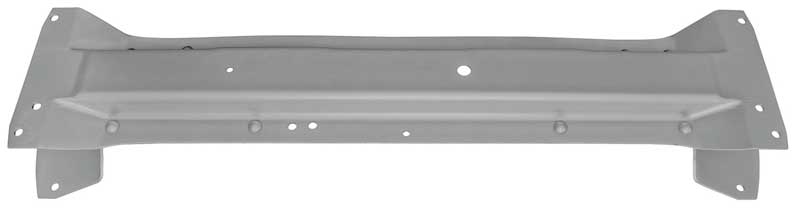

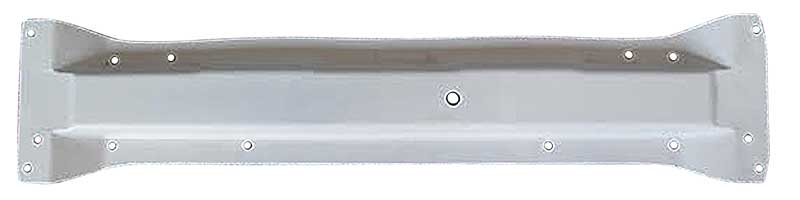

Reproduction front crossmember with factory style holes for connecting the LH and RH frame rails at the front of the frame. Also a good way to save a truck by replacing the damaged crossmember on a rusty or wrecked truck frame.
Additional Information
Technical Specifications
Top: 37-1/8" long x 6-1/4" wide
Bottom: 39-3/8" long x 6-1/4" wide
Brackets: 18" apart
Product Specifications
For Pickup, Blazer/Jimmy, Suburban
Factory Style Reproduction
OE-Style Mounting Holes
Connects the LH and RH Frame Rails beneath the wheel arch
Supplied in Weld-Thru Primer
Features & Benefits:
Replaces a Bent or Rusty OE Crossmember
The Crossmember At Coil Spring Mounting Location
Chevrolet Applications
1967-1972 Chevrolet Pickup Truck (C10)
1967-1967 Chevrolet Panel Truck
1967-1972 Chevrolet Suburban (C10)
1969-1972 Chevrolet Blazer
GMC Applications
1967-1972 GMC Pickup Truck (C15)
1967-1972 GMC Suburban (C15)
1970-1972 GMC Jimmy
Note: Shipped Oversize.
WELD-THRUTM: Instead of EDP coating, this product is finished in a silver weld-through primer that eliminates corrosion between overlapped panels, promotes superior weld characteristics, and requires minimal pre-weld preparation.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
