Wilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-D

Wilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-D
Wilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-DWilwood Brakes 1957-1967 Ford F-100 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-14838-D
$3,767.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 05/21/2024
Model: 3922131
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

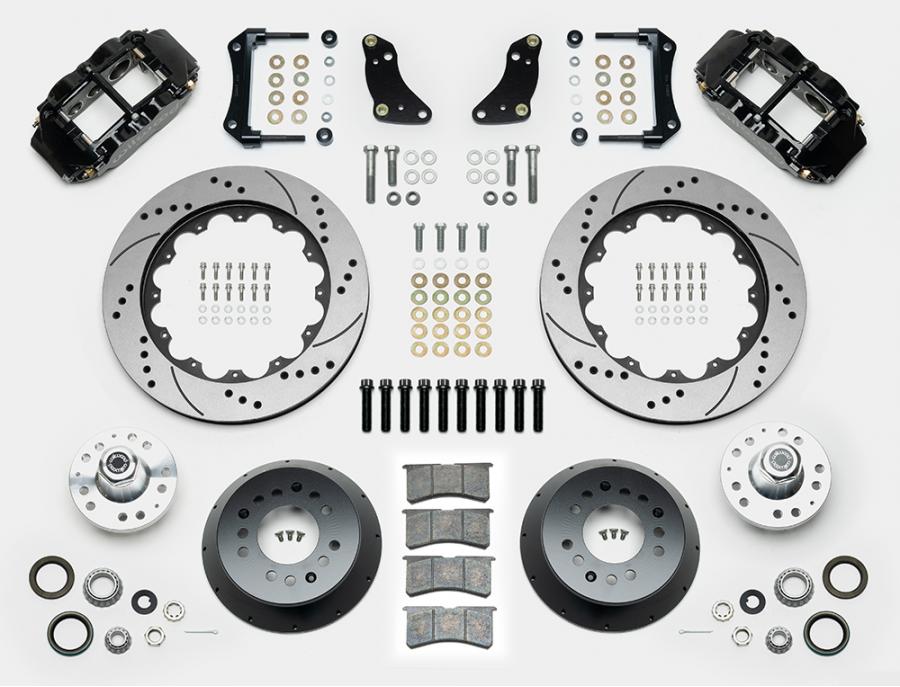

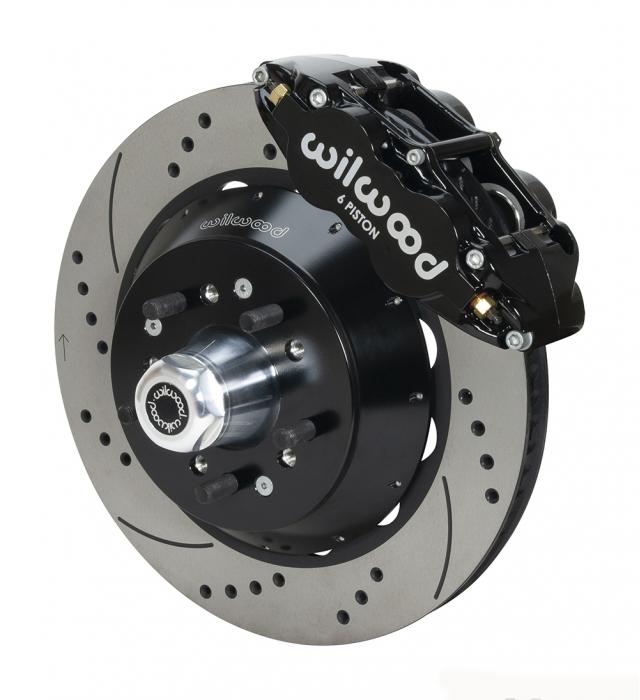

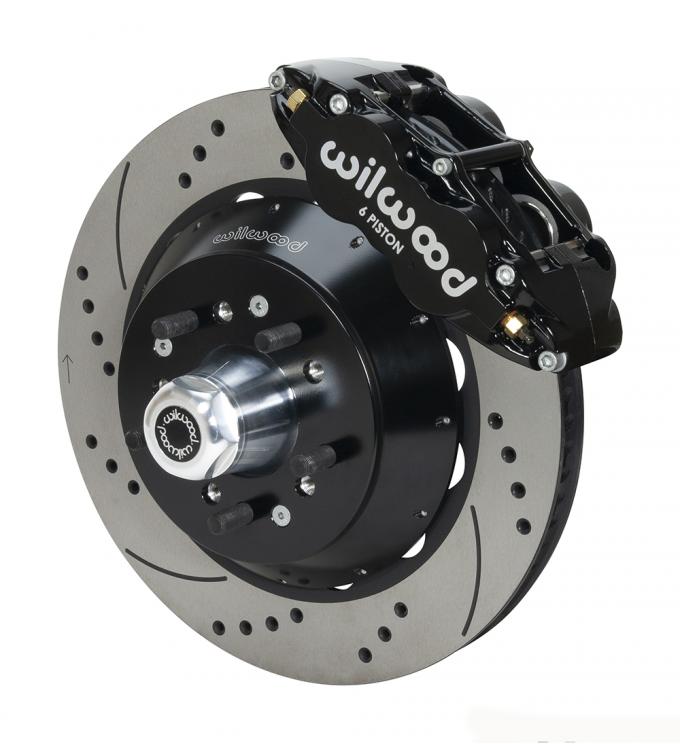

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional OEM spindles on American trucks. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1264.pdf819.58KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford F-100 Base 1957 - 1967 KIT,FRONT,57-67 FORD F100 TRUCK,FNSL6R 14.00 ROTOR,SRP; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-8401-BK
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 160-8400-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7710
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-5972
Replacement Piston 1 200-7520
Replacement Piston 2 200-8439
Replacement Piston 3 200-8439
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595

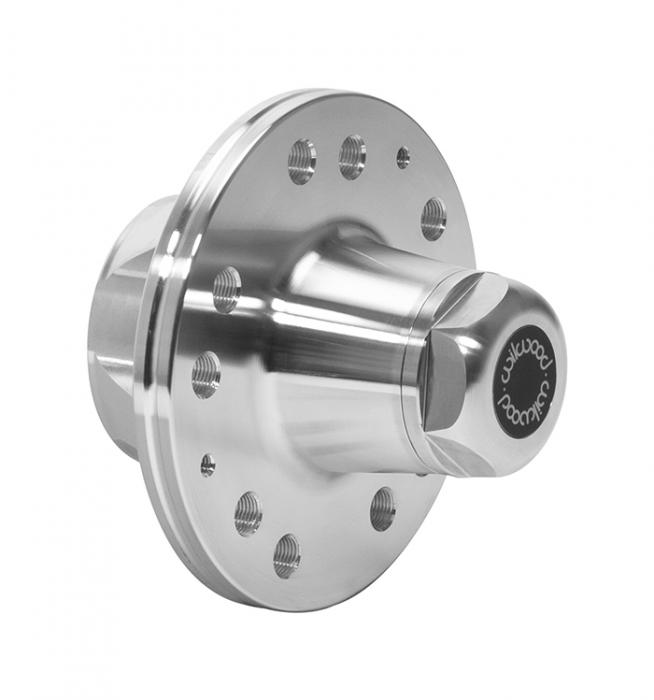

Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-14833
Material Aluminum
Mount Style Hat
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Hat Mount
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 X 4.75
Finish Color Black E-Coat
Hat - Part No 170-7467
Hat Offset Dimension (in) 1.750
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Flared Bell
Parts & Accessories / Hub
Bolt Kit 230-7032
Parts & Accessories / Hat
Bolt Kit 230-8008
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Black Powder Coat
Left Hand - Part No 120-11781-BK
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-11780-BK
Type Forged Narrow Superlite 6R
(Increase / Decrease Track Width)
Caliper Type 6 - Black Powder Coat

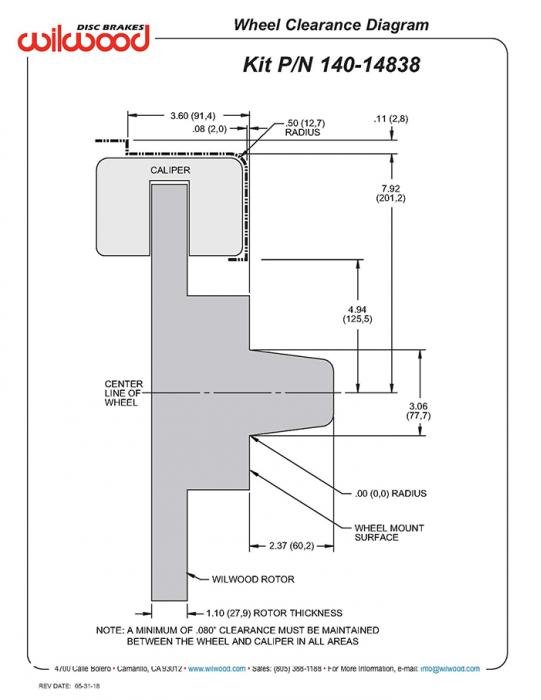

Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00
Spindle Type Factory Drum Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-11237
Kit Summary
OE Hub Offset +.230
