Wilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-R

Wilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-R
Wilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-RWilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-RWilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-RWilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-RWilwood Brakes 1976-1977 Ford Bronco D8-4 Truck Front Brake Kit 140-13928-R
$1,993.99 ea
NEWARRIVING SOONEstimated Ship Date 06/11/2024 (If Ordered Today)8 Available from WILWOOD ENGINEERING as of 05/25/2024
Model: 3921927
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

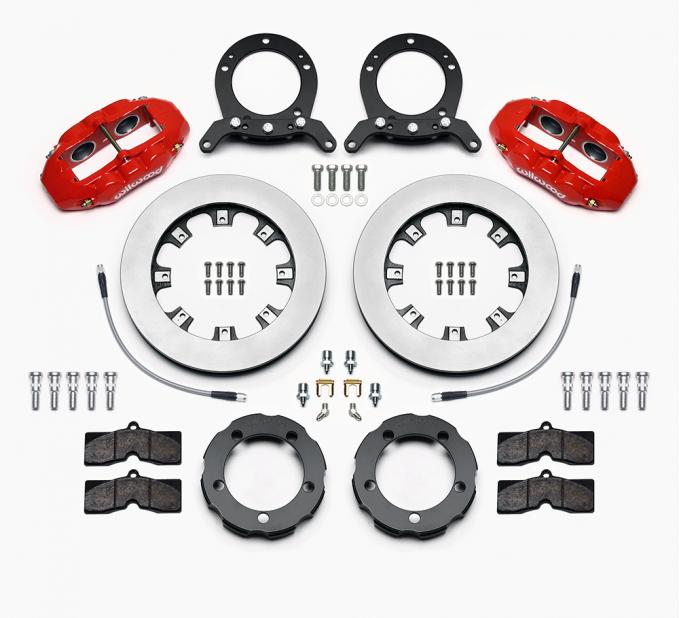

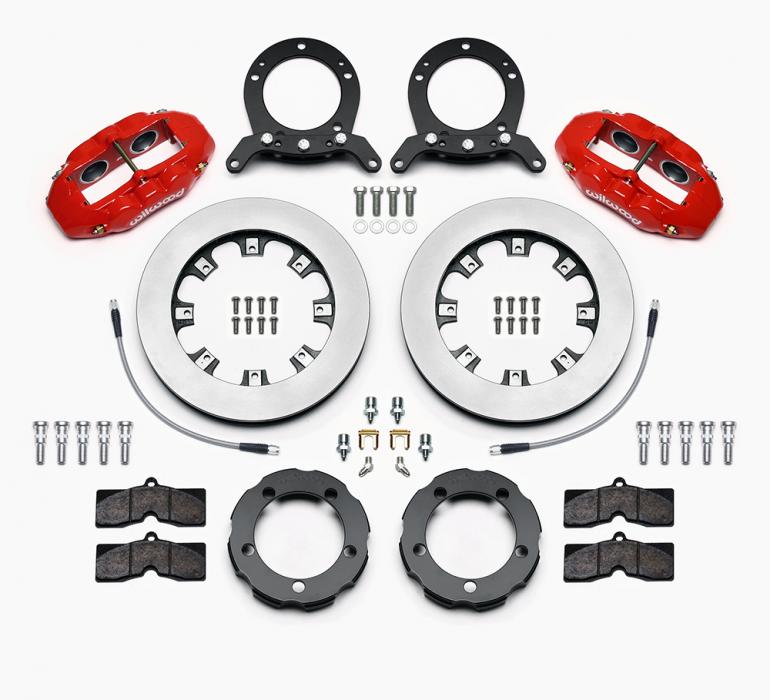

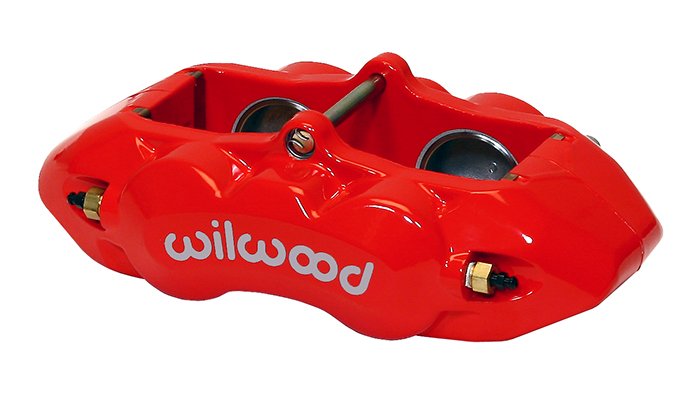

D8-4 Truck Front Brake Kits are designed for ultimate in braking torque and durability to fit inside of 15" to 16" rim. D8-4 four piston calipers are designed with forged billet aluminum bodies, stainless steel pistons and high-temperature seals. Kits are paired with a massive 12.19" x 1.25" rotor for maximum torque and thermal stability. Kits include, aluminum hat assemblies, brackets, hardware and Promatrix brake pads.

Fitment Notes

1. Kit will not work with GM Disc Brake / Spindle components.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1075.pdf473.26KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Ford Bronco 1976 - 1977 KIT,FRONT,FORD BRONCO,76-77,DANA 44,DISC SPINDLE,D8,12.19,RED,W/LINES; RTR:12.19-IN DIA, ULTRALITE 32 CURVED VANE, UNDRILLED; CLPR:D8-4, 4-PISTON, RED POWDER COAT
Kit will not work with GM Disc Brake / Spindle components.

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type UL
Dynamically Balanced No
Left Hand - Part No 160-2895
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-2894
Style Plain Face
Surface Finish Plain
Type ULtralite 32 Curved Vane
Vane Count 32 CV
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-11197
Pad Retainer 180-10524
Replacement Piston 1 200-7521
Replacement Piston 2 200-7521
Wear Plate - Left Hand 300-10523
Wear Plate - Right Hand 300-10523
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 5.50
Finish Color Black E-Coat
Hat - Part No 170-13313
Hat Offset Dimension (in) 1.450
Material Aluminum
Stud Diameter - BC 1 0.640
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-12120
Kit Components & Specs / Calipers
Brake Pad Plate D8
Brake Pad Volume (In³) 3.9
Finish Color Red Powder Coat
Left Hand - Part No 120-10525-RD
Mount Type Lug
Pad Compound PM - ProMatrix
Piston 1 Bore (in) 1.88
Piston 2 Bore (in) 1.88
Piston Area (In²) 5.56
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-10525-RD
Type D8-4
(Increase / Decrease Track Width)
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 16
Mount Type Lug
Rotor Diameter 12.19
Spindle Type Factory Disc Spindle
Parts & Accessories / Brake Lines
Front Line Kit 220-13319
Kit Summary
OE Hub Offset +.00
