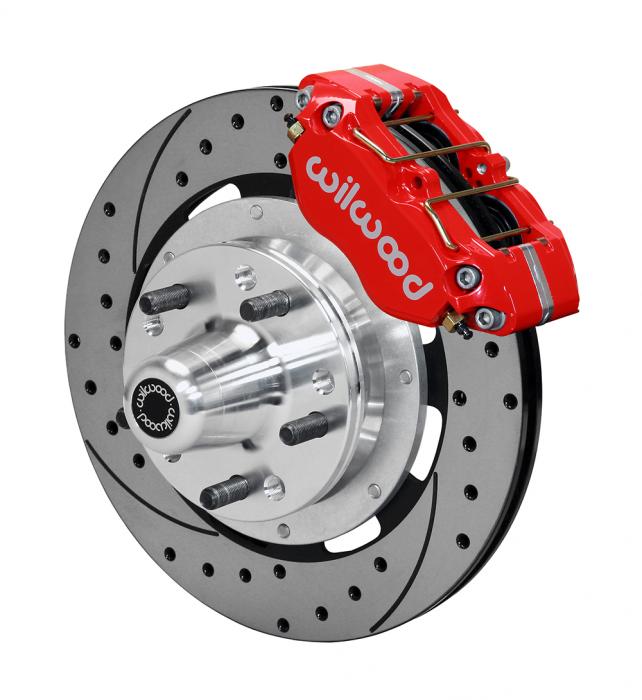

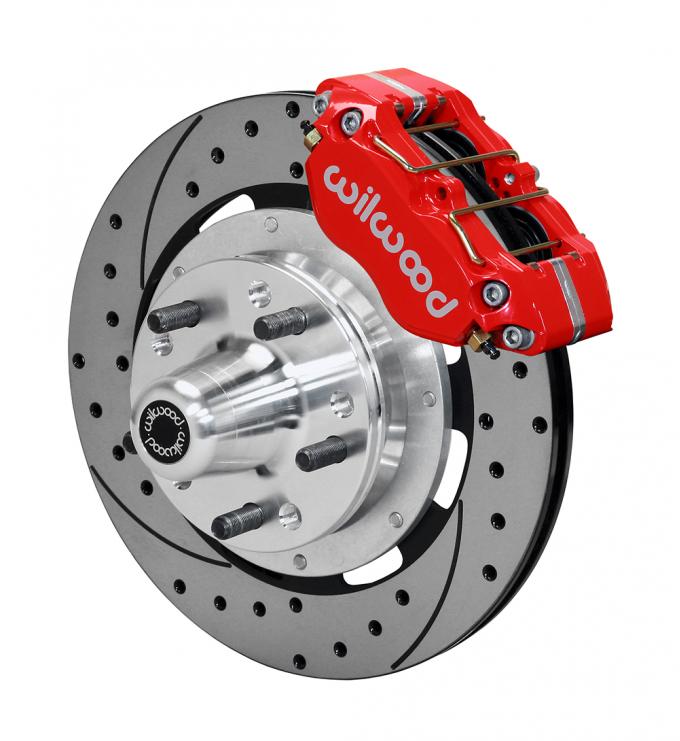

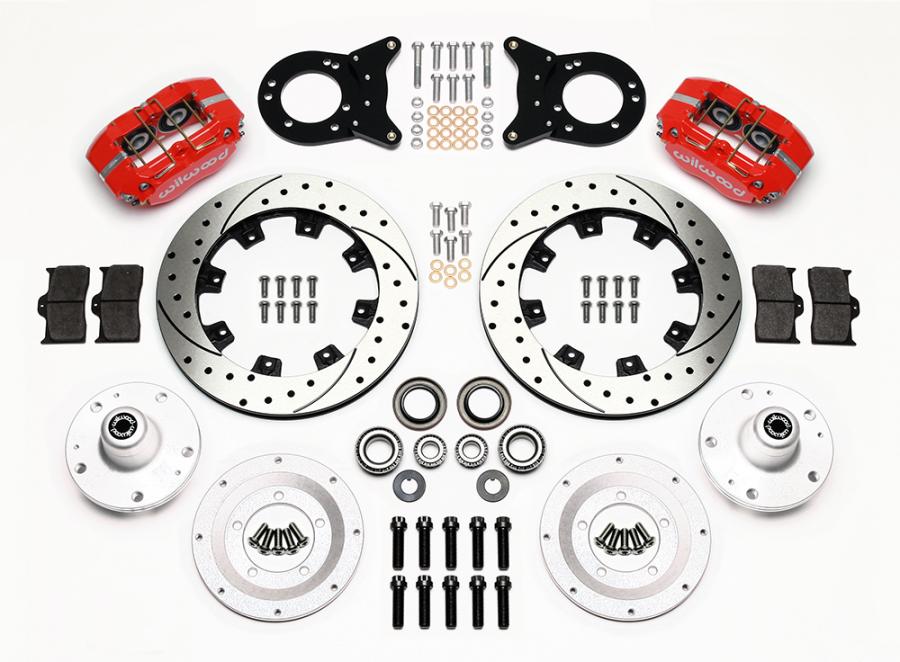

Wilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DR

Wilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DR
Wilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DRWilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DRWilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DRWilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DRWilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DRWilwood Brakes Dynapro Dust-Boot Big Brake Front Brake Kit (Hub) 140-13344-DR
$1,968.99 ea

Available Options

*
*
NEW
Model: 3921709
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Fitment Notes

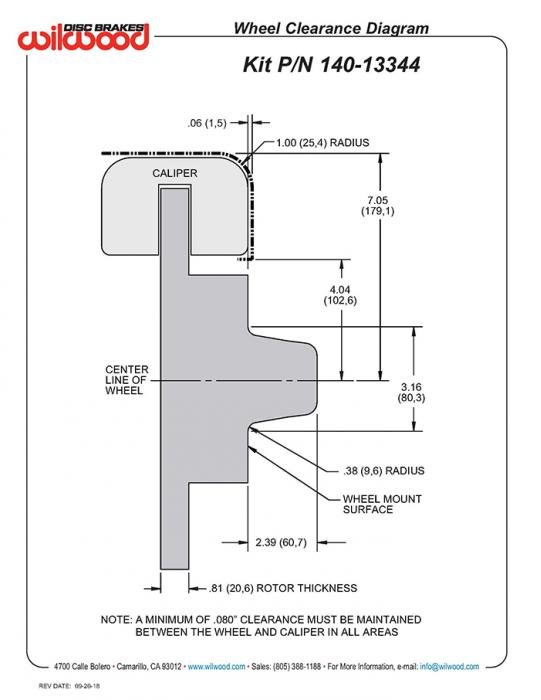

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1012.pdf549.23KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Ford Ranchero 1966 - 1967 KIT,FRONT,MUSTANG,65-69,DP-DB,12.19 ROTOR,VENTED,DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO DUST-BOOT, 4-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
With Drum Brake Spindle
with Disc Brake Spindle
Ford Ranchero 1965 KIT,FRONT,MUSTANG,65-69,DP-DB,12.19 ROTOR,VENTED,DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO DUST-BOOT, 4-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Drum Brake V-8 Spindle Only
with Disc Brake V-8 Spindle Only
Ford Ranchero 1968 KIT,FRONT,MUSTANG,65-69,DP-DB,12.19 ROTOR,VENTED,DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO DUST-BOOT, 4-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Disc Brake Spindle
Flexline kits: 1965-67 use 220-6471 (18"), 1968-up use 220-9195 (18").
With Drum Brake Spindle
Ford Ranchero 1969 KIT,FRONT,MUSTANG,65-69,DP-DB,12.19 ROTOR,VENTED,DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO DUST-BOOT, 4-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Disc Brake Spindle
With Drum Brake Spindle
Ford Ranchero 1963 - 1964 KIT,FRONT,MUSTANG,65-69,DP-DB,12.19 ROTOR,VENTED,DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO DUST-BOOT, 4-PISTON, RED POWDER COAT
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
with V-8 Spindle Only

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-7104-BK
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-7103-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 300-9636
Replacement Dustboot 210-7210
Replacement Piston 1 200-11484
Replacement Piston 2 200-11484
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-11058
Material Aluminum
Mount Style Adapter
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Vented Rotor Offset
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7812
Brake Pad Volume (In³) 2.1
Finish Color Red Powder Coat
Left Hand - Part No 120-11482-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Aluminum
Right Hand - Part No 120-11482-RD
Type Dynapro Dust-Boot
(Increase / Decrease Track Width)
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rotor Diameter 12.19
Spindle Type Factory Disc Spindle Factory Drum Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-12168
Kit Summary
OE Hub Offset +.09
