Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DR

Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DR
Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-10094-DR
$1,653.31$1,851.99 ea
NEWLOW STOCK ALERT!Only 2 Left in Stock
Model: 3920678
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Fitment Notes



1. C-10 / C-15 Truck - 5 lug only.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.





About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds583.pdf480.15KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Blazer 1969 - 1974 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet C10 Panel 1963 - 1967 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet C10 Pickup 1963 - 1974 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet C10 Suburban 1967 - 1986 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet C10 1975 - 1986 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet K5 Blazer 1975 - 1982 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet R10 Suburban 1987 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet R10 1987 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
Chevrolet Suburban 1963 - 1966 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC 1000 Series 1963 - 1965 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC 1000 1966 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C15 Suburban 1975 - 1978 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C15/C1500 Pickup 1967 - 1974 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C15/C1500 Suburban 1967 - 1974 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C1500 Suburban 1979 - 1986 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C1500 1979 - 1986 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC C15 1975 - 1978 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC Jimmy 1970 - 1987 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC R1500 Suburban 1987 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC R1500 1987 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15
GMC Suburban 1963 - 1966 KIT,REAR,DISC/DRUM,C10 CHEVY 63-87,5 LUG 2.42 OFFSET,1PC,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
C-10 / C-15 Truck - 5 lug only.
Kit may fit some 15

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 2.42
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rear End Axle Large Chevy C10
Rotor Diameter 12.19

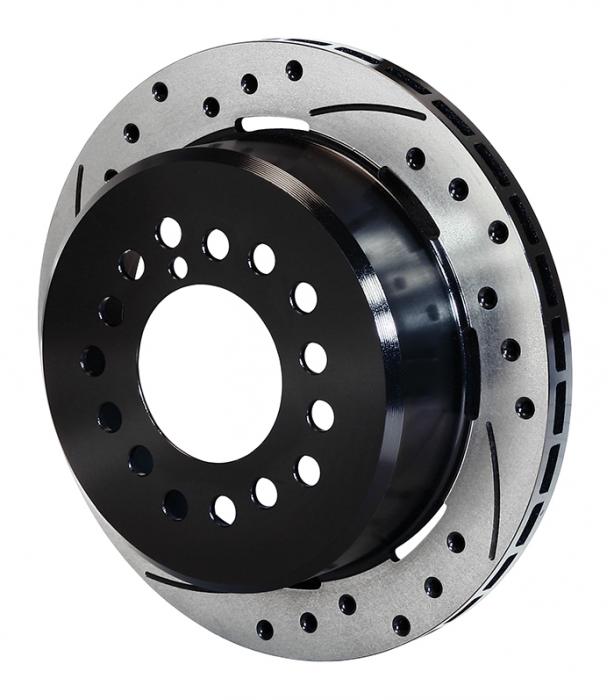

Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-9990-BK
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-9989-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor & Hat
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2658
Pad Retainer 180-0055
Replacement Piston 1 200-7518
Replacement Piston 2 200-7518
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Red Powder Coat
Left Hand - Part No 120-13839-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.38
Piston 2 Bore (in) 1.38
Piston Area (In²) 3.00
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13839-RD
Type Forged Dynalite Internal
Parts & Accessories / Brake Lines
Parking Brake Cable 330-9371
