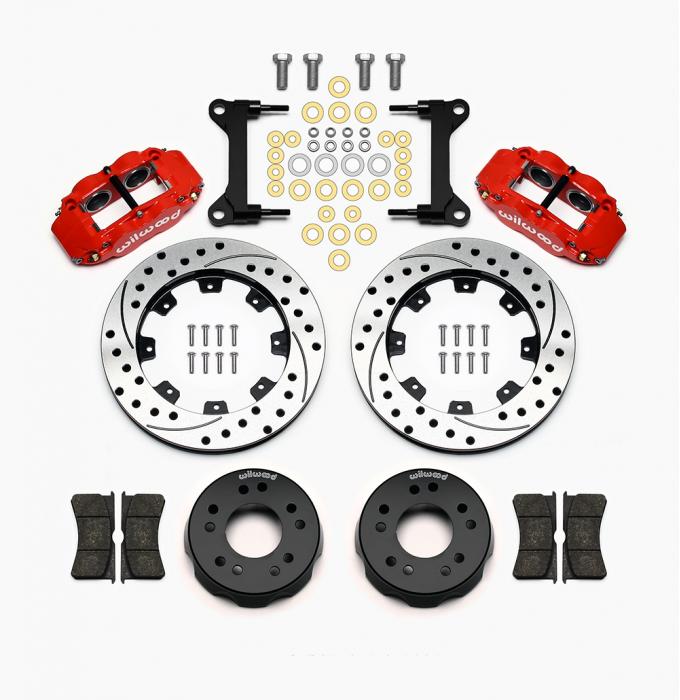

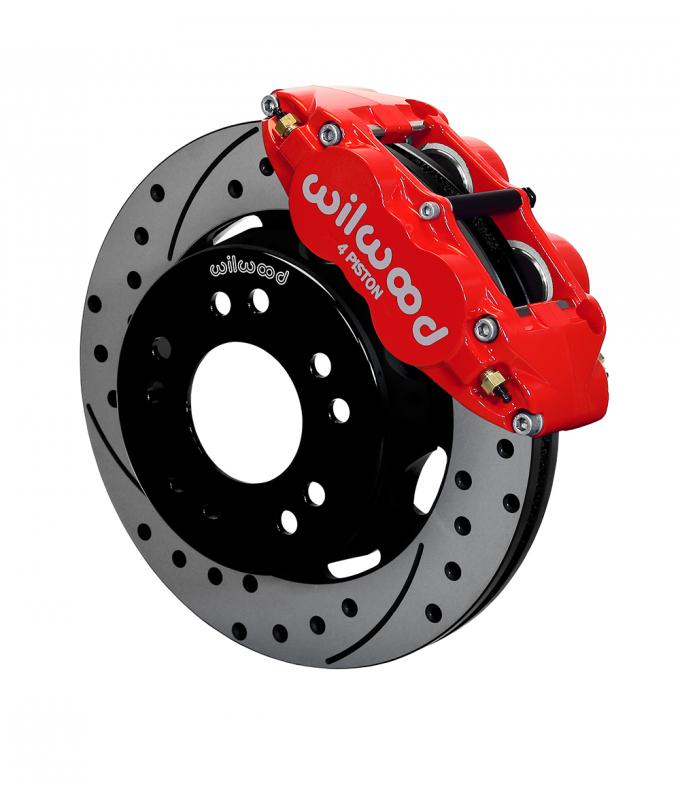

Wilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DR

Wilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DR
Wilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DRWilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DRWilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DRWilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DRWilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DRWilwood Brakes Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) 140-15302-DR
$2,043.99 ea
NEWARRIVING SOONEstimated Ship Date 06/13/2024 (If Ordered Today)50 Available from WILWOOD ENGINEERING as of 05/30/2024
Model: 3922249
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19” big rotor kit for the popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new Modular Drop Pro Spindles. SL4 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Fitment Notes

1. Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1158.pdf512KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet C10 Panel 1963 - 1967 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet C10 Pickup 1963 - 1974 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet C10 Suburban 1967 - 1986 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet C10 1975 - 1986 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet R10 Suburban 1987 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet R10 1987 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
Chevrolet Suburban 1963 - 1966 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC 1000 Series 1963 - 1965 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC 1000 1966 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC C15 Suburban 1975 - 1978 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC C15/C1500 Pickup 1967 - 1974 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC C15/C1500 Suburban 1967 - 1974 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC C1500 Suburban 1979 - 1986 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC C1500 1979 - 1986 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC Jimmy 1970 - 1987 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC R1500 Suburban 1987 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC R1500 1987 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs
GMC Suburban 1963 - 1966 KIT,FRONT,WWE C10 PRO SPINDLE,FNSLR 12.19 ROTOR,SRP,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, RED POWDER COAT
Brake kits require Wilwood Pro Drop Spindle Kits to fit. Will not fit original equipment spindles.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Wilwood Drop Spindle
5 Lugs

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-14340-BK
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-14339-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 32 V
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7710
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Bolt Circle 2 5 X 5.00
Finish Color Black E-Coat
Hat - Part No 170-14206
Hat Offset Dimension (in) 1.530
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Drag Hat - Shallow Offset
Parts & Accessories / Hat
Bolt Kit 230-12177
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Red Powder Coat
Left Hand - Part No 120-11784-RD
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-11784-RD
Type Forged Narrow Superlite 4R
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Radial
Rotor Diameter 12.19
Spindle Type Drop Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7056, 220-12168, 220-11237
