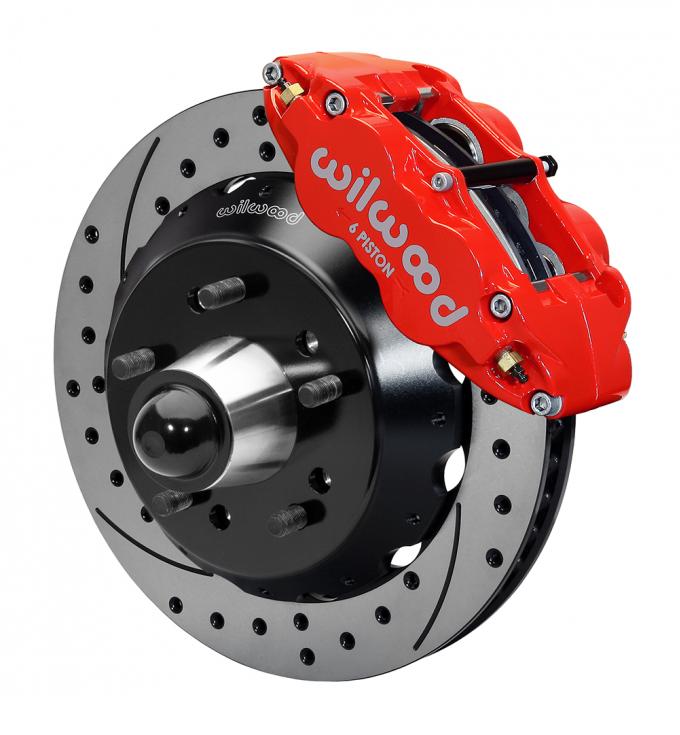

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DR

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DR
Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DR
$3,767.99 ea
NEWARRIVING SOONEstimated Ship Date 06/05/2024 (If Ordered Today)22 Available from WILWOOD ENGINEERING as of 05/21/2024
Model: 3920839
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Fitment Notes

1. 14" Rotor
2. Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds649.pdf457.1KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet C10 Panel 1963 - 1967 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet C10 Panel 1964 - 1966 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
Chevrolet C10 Pickup 1964 - 1974 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet C10 Pickup 1963 - 1973 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
Chevrolet C10 Suburban 1967 - 1986 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet C10 Suburban 1968 - 1985 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
Chevrolet C10 1976 - 1986 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet C10 1975 - 1985 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
Chevrolet R10 Suburban 1987 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet R10 1987 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
R10 Pickup Models
Chevrolet Suburban 1963 - 1965 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
Chevrolet Suburban 1964 - 1966 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
GMC 1000 Series 1963 - 1965 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC 1000 1966 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC C15 Suburban 1975 - 1978 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
GMC C15/C1500 Pickup 1968 - 1974 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC C15/C1500 Pickup 1967 - 1973 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC C15/C1500 Suburban 1968 - 1974 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC C15/C1500 Suburban 1967 - 1973 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
GMC C1500 Suburban 1980 - 1986 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC C1500 Suburban 1979 - 1985 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle
GMC C1500 1980 - 1986 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC C1500 1979 - 1985 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC C15 1975 - 1977 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC C15 1976 - 1978 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC Jimmy 1970 - 1986 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC Jimmy 1971 - 1987 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP Drop Spindle
GMC R1500 1987 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC Suburban 1964 - 1966 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with CPP 2" Drop Spindle
5 Lugs
with Ridetech Drop Spindle
GMC Suburban 1963 - 1965 KIT,FRONT,C-10 CPP SPINDLE,FNSL6R,14.00 ROTOR,DRILLED,RED; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, RED POWDER COAT
14" Rotor
Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with Ridetech Drop Spindle
5 Lugs
with CPP 2" Drop Spindle

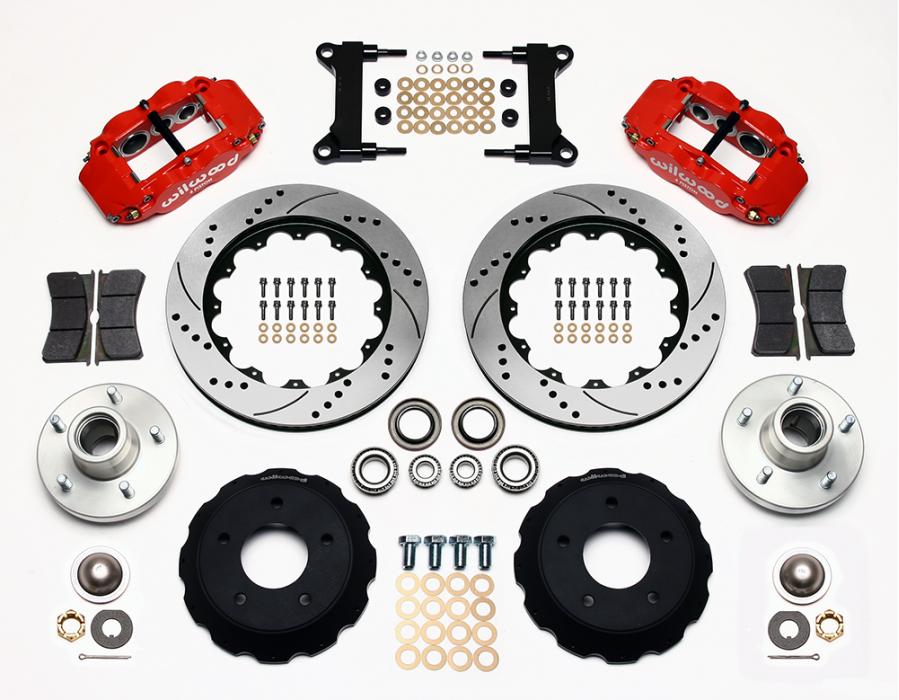

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-8397-BK
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 160-8396-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7049
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-5972
Replacement Piston 1 200-7520
Replacement Piston 2 200-8439
Replacement Piston 3 200-8439
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Bolt Circle 2 5 X 5.00
Finish Color Black E-Coat
Hat - Part No 170-10753
Hat Offset Dimension (in) 1.620
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Flared Bell
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.75
Bolt Circle 2 5 x 5.00
Finish Color Bare
Hub - Part No 270-13217
Material Aluminum
Mount Style Hat
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Hat Mount
Parts & Accessories / Hat
Bolt Kit 230-8008
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Red Powder Coat
Left Hand - Part No 120-11779-RD
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-11778-RD
Type Forged Narrow Superlite 6R
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00
Spindle Type Drop Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7056, 220-11237

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) 140-10776-DR:
Classic Truck 2024
