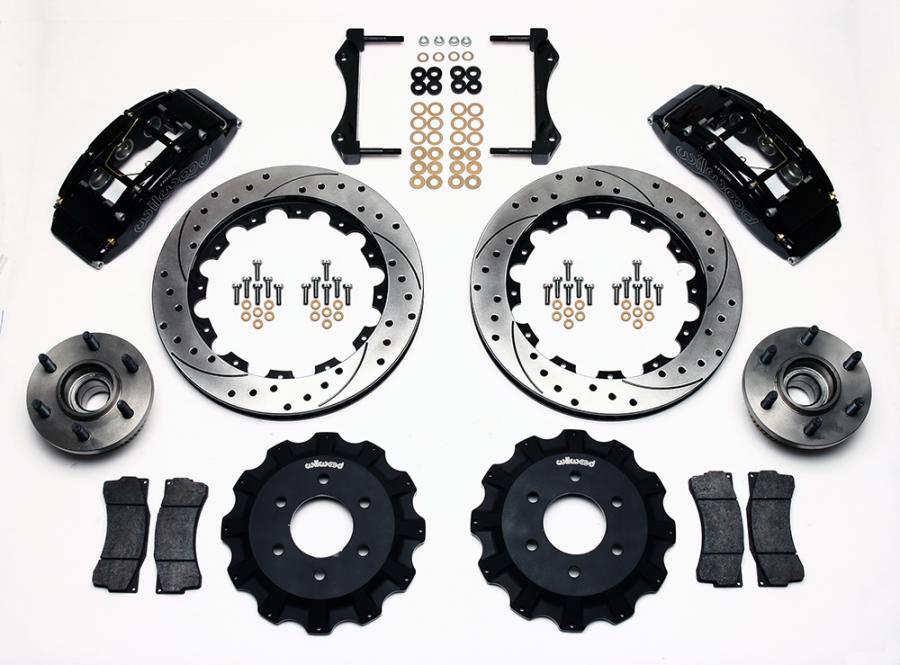

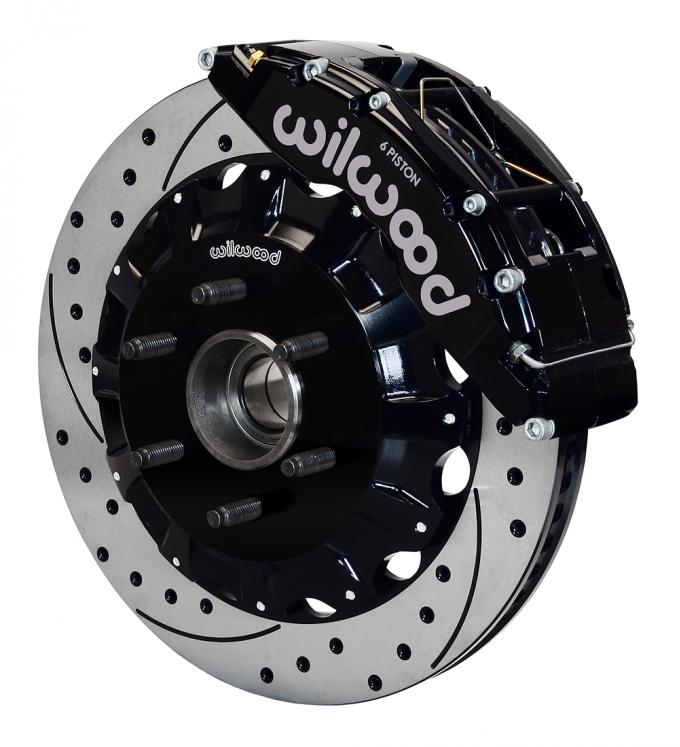

Wilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-D

Wilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-D
Wilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-DWilwood Brakes TC6R Big Brake Truck Front Brake Kit 140-9072-D
$5,448.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 05/30/2024
Model: 3920436
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

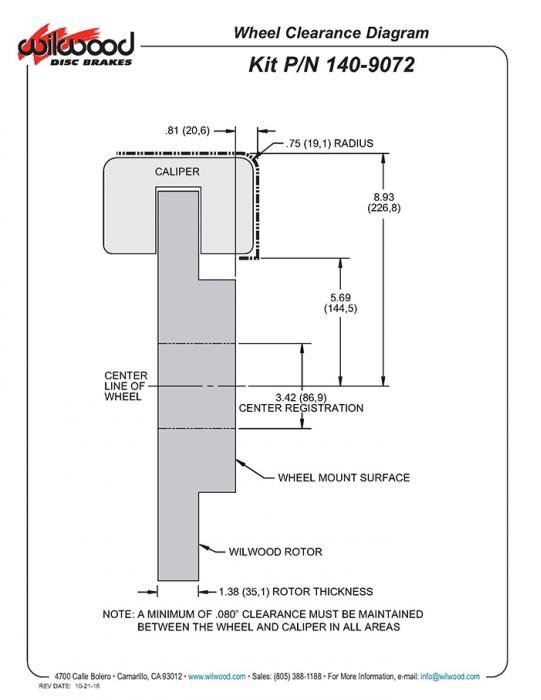

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds514.pdf313.96KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Ford F-150 2005 - 2008 KIT,FRONT,FORD F150,04-08,16.00 ROTOR PERFORMANCE DRILLED; RTR:16.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:TC6, 6-PISTON, BLACK POWDER COAT
6 Lugs
Ford F-150 2004 KIT,FRONT,FORD F150,04-08,16.00 ROTOR PERFORMANCE DRILLED; RTR:16.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:TC6, 6-PISTON, BLACK POWDER COAT
6 Lugs
Eleventh Digit of VIN is K or N
New Style

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-8956-BK
Material Spec-37 Iron
Outside Diameter (in) 16.00
Right Hand - Part No 160-8955-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 60 CV
Width (in) 1.38
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-6069
Bridge Bolt Kit 230-9171
Crossover Tube 190-9172
O-ring Kit 130-3084
Replacement Piston 1 200-7528
Replacement Piston 2 200-7518
Replacement Piston 3 200-7518
Wear Plate - Left Hand 300-8894
Wear Plate - Right Hand 300-8893
Kit Components & Specs / Rotor Hats
Bolt Circle 1 6 X 5.32
Finish Color Black E-Coat
Hat - Part No 170-9066
Hat Offset Dimension (in) 1.110
Material Aluminum
Stud Diameter - BC 1 0.590
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Truck Hat - Standard

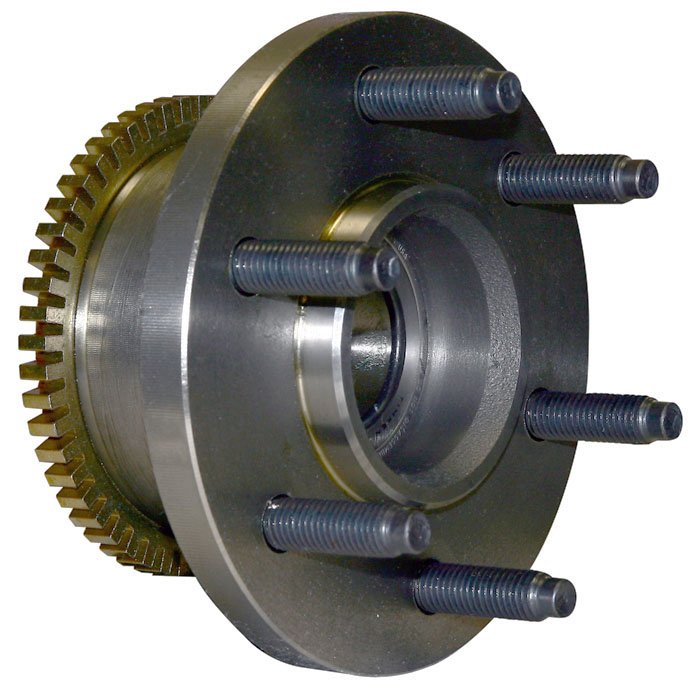

Kit Components & Specs / Hubs
Bolt Circle 1 6 x 5.32
Finish Color Bare
Hub - Part No 270-9035
Material Steel
Mount Style Hat
Stud Diameter - BC 1 14mm x 2.0
Type Truck
Parts & Accessories / Hat
Bolt Kit 230-12176

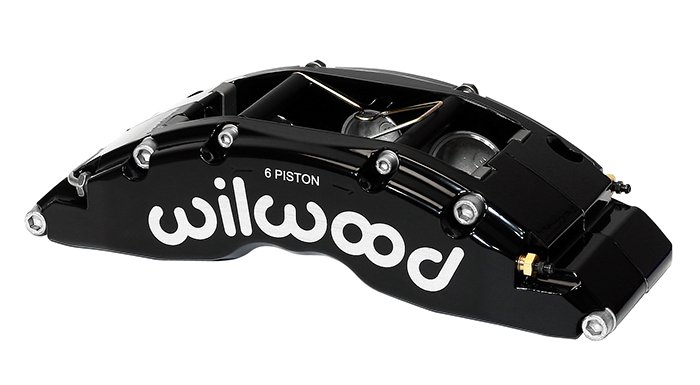

Kit Components & Specs / Calipers
Brake Pad Area (In²) 13
Brake Pad Plate 6318
Brake Pad Volume (In³) 6
Finish Color Black Powder Coat
Left Hand - Part No 120-14318-RS
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Piston Area (In²) 5.40
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14317-RS
Type TC6
(Increase / Decrease Track Width)
Caliper Type 6 - Black Powder Coat
Min Wheel Diameter Req'd* 20
Mount Type Radial
Rotor Diameter 16.00
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-9073, 220-11238
Kit Summary
OE Hub Offset +.25
