Wilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-R

Wilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-R
Wilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-RWilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-RWilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-RWilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-RWilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-RWilwood Brakes TC6R Big Brake Truck Rear Brake Kit 140-9406-R
$4,729.99 ea
NEWARRIVING SOONEstimated Ship Date 06/13/2024 (If Ordered Today)3 Available from WILWOOD ENGINEERING as of 05/30/2024
Model: 3920576
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

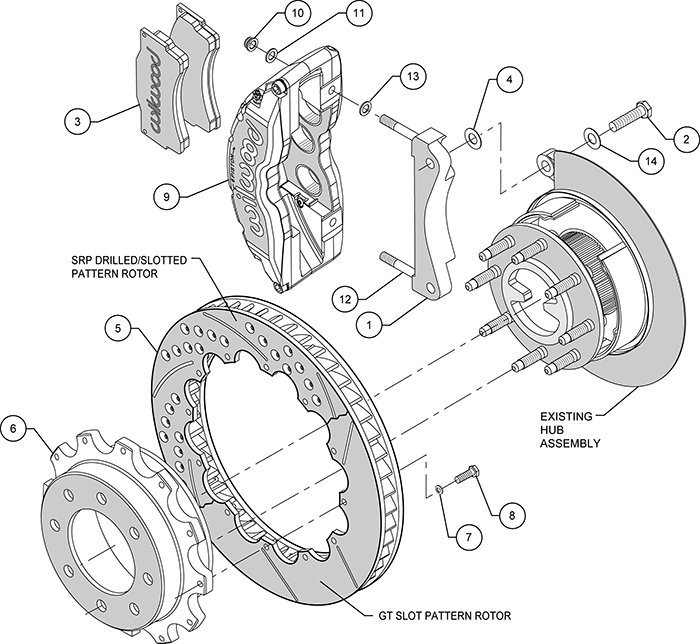

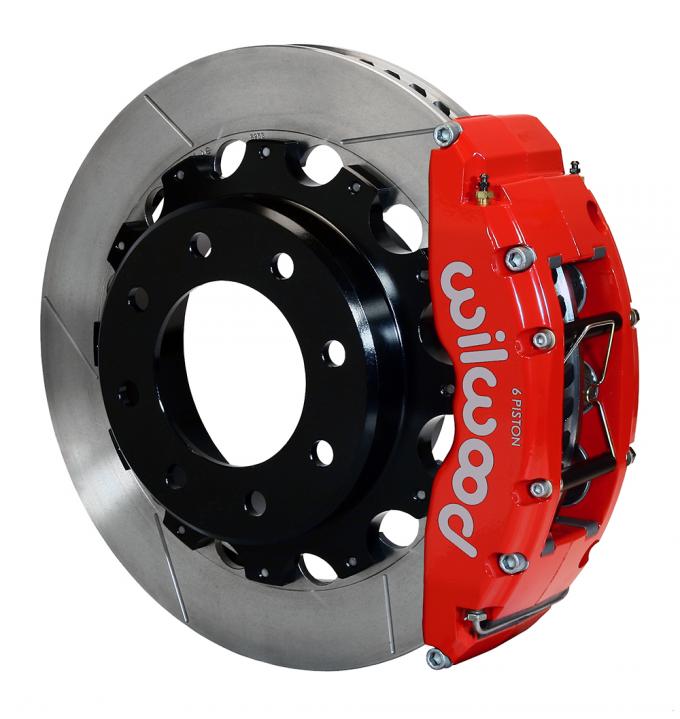

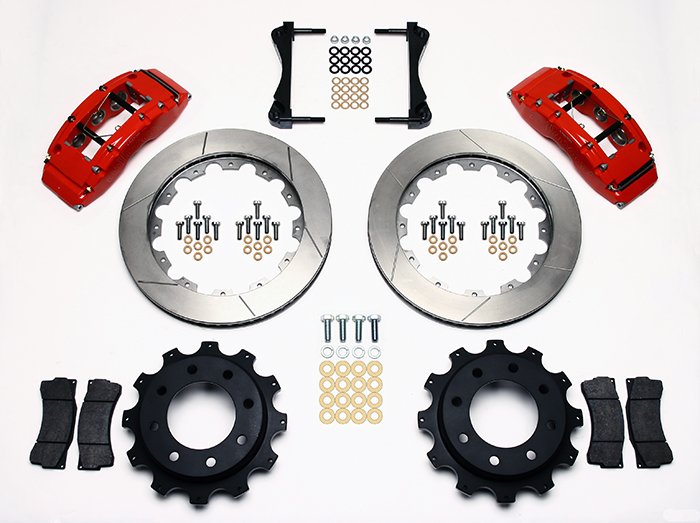

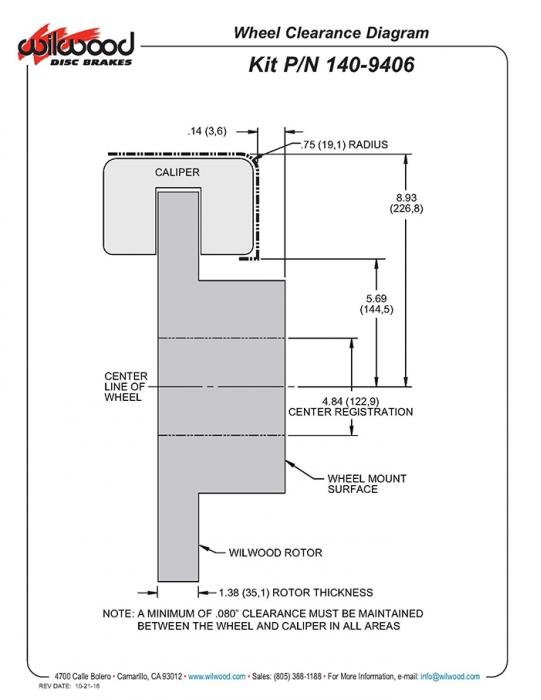

TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.

Fitment Notes

1. Fits axle with 4.84 center register only.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds560.pdf325.39KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Avalanche 2500 2002 - 2006 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
Chevrolet Silverado 2500 HD 2008 - 2010 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Silverado 2500 HD 2007 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
Classic Design
Chevrolet Silverado 2500 HD 2001 - 2006 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear
Chevrolet Silverado 2500 2004 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
Chevrolet Silverado 2500 1999 - 2003 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear
Chevrolet Suburban 2500 LS 2012 - 2013 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 LT 2012 - 2013 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 2007 - 2011 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 2001 - 2006 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear
GMC Sierra 2500 HD 2008 - 2010 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Sierra 2500 HD 2007 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
Classic Design
GMC Sierra 2500 HD 2001 - 2006 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear
GMC Sierra 2500 1999 - 2004 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear
GMC Yukon XL 2500 SLE 2012 - 2013 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 SLT 2012 - 2013 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 2007 - 2011 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 2001 - 2006 KIT,REAR,2500,99-UP,4.84 CENTER REG,16.00 ROTOR,RED; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TC6, 6-PISTON, RED POWDER COAT
Fits axle with 4.84 center register only.
8 Lugs
with 4.84 Center Hole Rear

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 20
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 16.00
Kit Components & Specs / Rotors
Bedded No
Design Type GT-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-8954-GTB
Material Spec-37 Iron
Outside Diameter (in) 16.00
Right Hand - Part No 160-8953-GTB
Style GT Slotted
Surface Finish Black Electro Coat
Type GT 60 Curved Vane
Vane Count 60 CV
Width (in) 1.38
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-6069
Bridge Bolt Kit 230-9171
Crossover Tube 190-9172
O-ring Kit 130-3084
Replacement Piston 1 200-7528
Replacement Piston 2 200-7518
Replacement Piston 3 200-7518
Wear Plate - Left Hand 300-8894
Wear Plate - Right Hand 300-8893
Kit Components & Specs / Rotor Hats
Bolt Circle 1 8 x 6.50
Finish Color Black E-Coat
Hat - Part No 170-14029
Hat Offset Dimension (in) 1.910
Material Iron
Stud Diameter - BC 1 0.640
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Parking Brake Hat - Truck
Kit Components & Specs / Calipers
Brake Pad Area (In²) 13
Brake Pad Plate 6318
Brake Pad Volume (In³) 6
Finish Color Red Powder Coat
Left Hand - Part No 120-14318-FSR
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Piston Area (In²) 5.40
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14317-FSR
Type TC6
Parts & Accessories / Brake Lines
