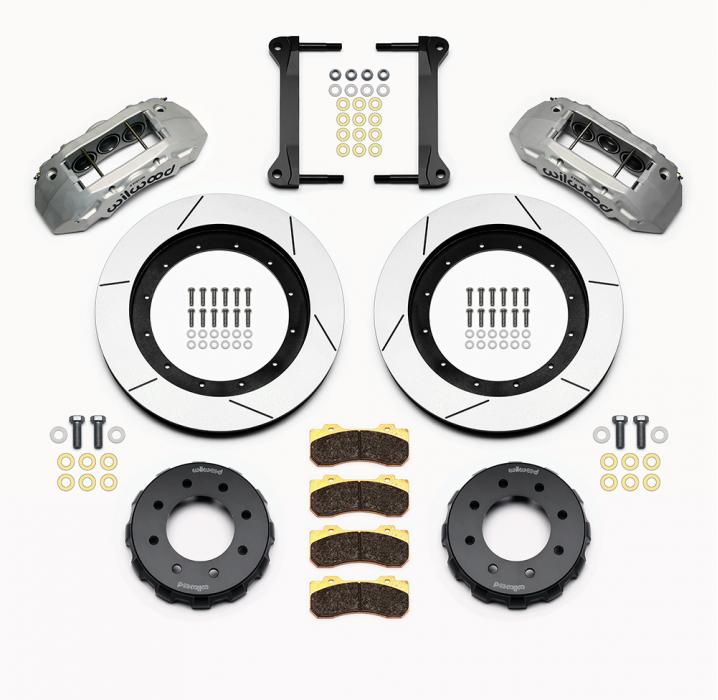

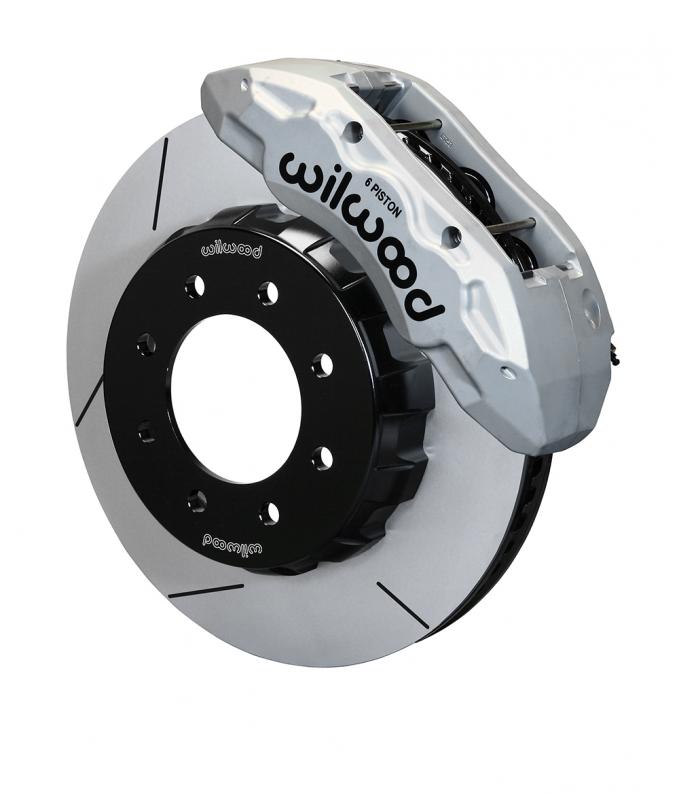

Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-C

Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-C
Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-CWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-CWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-CWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-CWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-CWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-13877-C
$4,419.99 ea
NEWARRIVING SOONEstimated Ship Date 06/12/2024 (If Ordered Today)5 Available from WILWOOD ENGINEERING as of 05/29/2024
Model: 3921889
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1092.pdf464.92KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Avalanche 2500 2002 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
Chevrolet Silverado 1500 HD 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
Chevrolet Silverado 1500 HD 2003 - 2005 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
Except 4 Wheel Steering
Chevrolet Silverado 2500 HD 2008 - 2010 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Silverado 2500 HD 2007 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
Classic Design
Chevrolet Silverado 2500 HD 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear
Chevrolet Silverado 2500 2004 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.63 Center Hole Rear
Chevrolet Silverado 2500 1999 - 2003 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear
Chevrolet Silverado 3500 Classic 2007 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs without Dual Rear Wheels
8 Lugs
Chevrolet Silverado 3500 HD 2007 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
without Dual Rear Wheels
with Dual Rear Wheels (DRW)
Chevrolet Silverado 3500 HD 2008 - 2010 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs without Dual Rear Wheels
8 Lugs with Dual Rear Wheels
Chevrolet Silverado 3500 2001 - 2003 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
Chevrolet Silverado 3500 2005 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
8 Lugs without Dual Rear Wheels
Chevrolet Silverado 3500 2004 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs without Dual Rear Wheels
8 Lugs
Chevrolet Suburban 2500 LS 2012 - 2013 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 LT 2012 - 2013 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 2007 - 2011 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
Chevrolet Suburban 2500 2000 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.63 Center Hole Rear
Chevrolet Suburban 2500 2002 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.63 Center Hole Rear
with 4.84 Center Hole Rear
Chevrolet Suburban 2500 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear
GMC Sierra 1500 HD 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
GMC Sierra 1500 HD 2003 - 2005 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
Except 4 Wheel Steering
GMC Sierra 2500 HD 2008 - 2010 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Sierra 2500 HD 2007 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
Classic Design
GMC Sierra 2500 HD 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear
GMC Sierra 2500 2003 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.63 Center Hole Rear
with 4.84 Center Hole Rear
GMC Sierra 2500 1999 - 2004 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear
GMC Sierra 3500 HD 2007 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
New Style
without Dual Rear Wheels
with Dual Rear Wheels (DRW)
GMC Sierra 3500 HD 2010 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs with Dual Rear Wheels
8 Lugs without Dual Rear Wheels
GMC Sierra 3500 HD 2008 - 2009 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs without Dual Rear Wheels
8 Lugs with Dual Rear Wheels
GMC Sierra 3500 2001 - 2003 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
GMC Sierra 3500 2005 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs with Dual Rear Wheels
8 Lugs without Dual Rear Wheels
GMC Sierra 3500 2004 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs without Dual Rear Wheels
8 Lugs with Dual Rear Wheels
GMC Yukon XL 2500 SLE 2012 - 2013 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 SLT 2012 - 2013 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 2007 - 2011 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
8 Lugs
GMC Yukon XL 2500 2000 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.63 Center Hole Rear
GMC Yukon XL 2500 2001 - 2006 KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,ANO; RTR:16.00-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, TYPE III ANO
8 Lugs
with 4.84 Center Hole Rear
with 4.63 Center Hole Rear

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type GT-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-13788-GTB
Material Spec-37 Iron
Outside Diameter (in) 16.00
Right Hand - Part No 160-13787-GTB
Style GT Slotted
Surface Finish Black Electro Coat
Type GT 60 Curved Vane
Vane Count 60 CV
Width (in) 1.50
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-14279
Pad Retainer 180-9874
Replacement Piston 1 200-13808
Replacement Piston 2 200-7521
Replacement Piston 3 200-7521
Wear Plate - Left Hand 300-5922
Wear Plate - Right Hand 300-5923

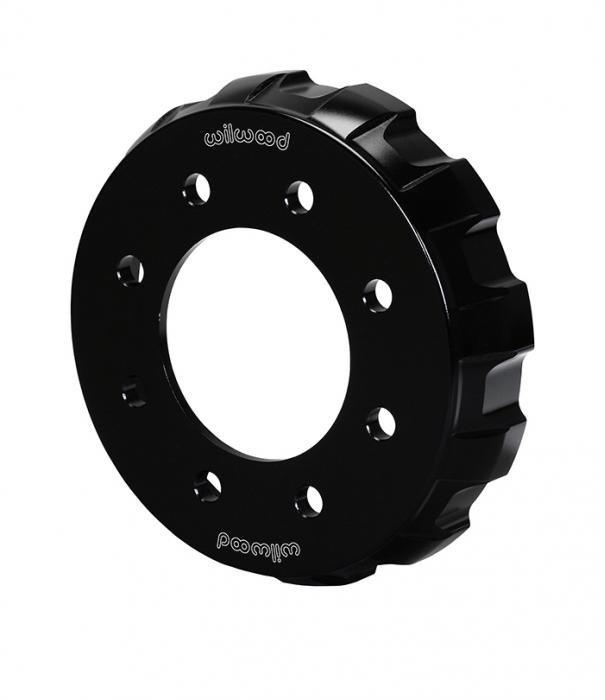

Kit Components & Specs / Rotor Hats
Bolt Circle 1 8 x 6.50
Finish Color Black E-Coat
Hat - Part No 170-14027
Hat Offset Dimension (in) 1.670
Material Aluminum
Stud Diameter - BC 1 0.630
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Truck Hat - Standard
Kit Components & Specs / Calipers
Brake Pad Area (In²) 12.69
Brake Pad Plate 10120
Brake Pad Volume (In³) 6.81
Finish Color Type III Ano
Left Hand - Part No 120-13814
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 2.00
Piston 2 Bore (in) 1.88
Piston 3 Bore (in) 1.88
Piston Area (In²) 8.70
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-13813
Type TX6R
Caliper Type 6 - Type III Ano
Min Wheel Diameter Req'd* 20
Mount Type Radial
Rotor Diameter 16.00
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-8998, 220-10980
