Wilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-R

Wilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-R
Wilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-RWilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-RWilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-RWilwood Brakes TX6R Big Brake Truck Rear Brake Kit 140-14559-R
$4,669.99 ea
NEWARRIVING SOONEstimated Ship Date 06/11/2024 (If Ordered Today)4 Available from WILWOOD ENGINEERING as of 05/25/2024
Model: 3922065
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

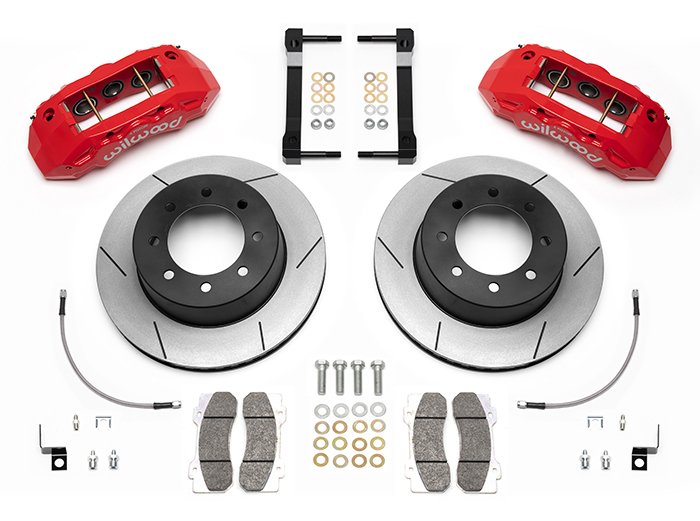

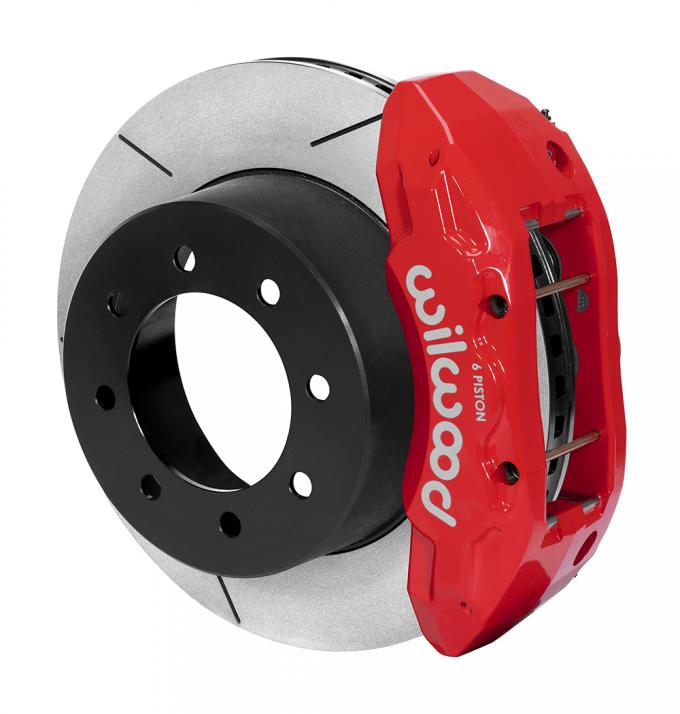

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.50”, 1 piece, GTB alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines are supplied for this specific application.

Fitment Notes

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1239.pdf516.01KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Ford F-250 Super Duty 2013 - 2017 KIT,REAR,FORD F250/F350,4WD,2013-2017 TX6R,15.50 ROTOR,RED,W/LINES; RTR:15.50-IN DIA, GTB VENTED ROTOR & HAT, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT
without Dual Rear Wheels (SRW)
Ford F-350 Super Duty 2013 - 2017 KIT,REAR,FORD F250/F350,4WD,2013-2017 TX6R,15.50 ROTOR,RED,W/LINES; RTR:15.50-IN DIA, GTB VENTED ROTOR & HAT, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT
without Dual Rear Wheels (SRW)

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 20
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 15.50
Kit Components & Specs / Rotors
Bedded No
Design Type GT-BLK
Dynamically Balanced No
Left Hand - Part No 160-14563-GTB
Material Iron
Outside Diameter (in) 15.50
Right Hand - Part No 160-14563-GTB
Style GT Slotted
Surface Finish Black Electro Coat
Type GTB Vented Rotor & Hat
Vane Count 48 V
Width (in) 1.38
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-3084
Pad Retainer 180-9874
Replacement Piston 1 200-7519
Replacement Piston 2 200-7516
Replacement Piston 3 200-7516
Wear Plate - Left Hand 300-5922
Wear Plate - Right Hand 300-5923
Kit Components & Specs / Calipers
Brake Pad Area (In²) 12.69
Brake Pad Plate 10120
Brake Pad Volume (In³) 6.81
Finish Color Red Powder Coat
Left Hand - Part No 120-14600-RD
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Piston Area (In²) 5.06
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14599-RD
Type TX6R
Parts & Accessories / Brake Lines
Front Line Kit 220-14166
