Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491

Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491
Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491Wilwood Brakes Forged Dynalite Pro Series Front Brake Kit 140-11491
$1,137.99 ea
NEWARRIVING SOONEstimated Ship Date 06/22/2021 (If Ordered Today)Out of stock at WILWOOD ENGINEERING as of 06/13/2021
Model: 3000466
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

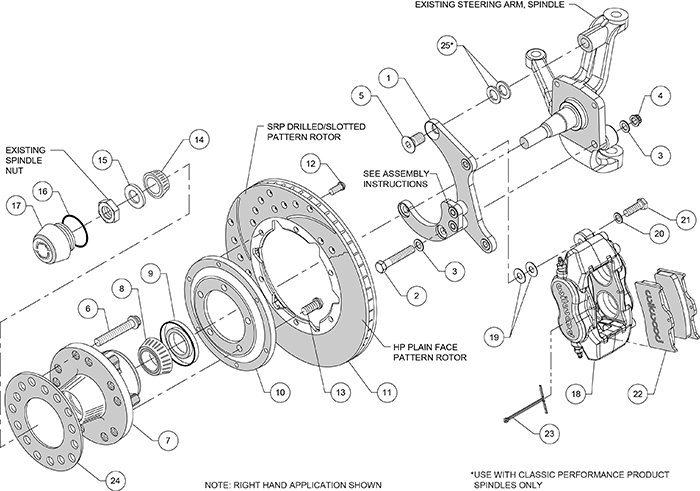

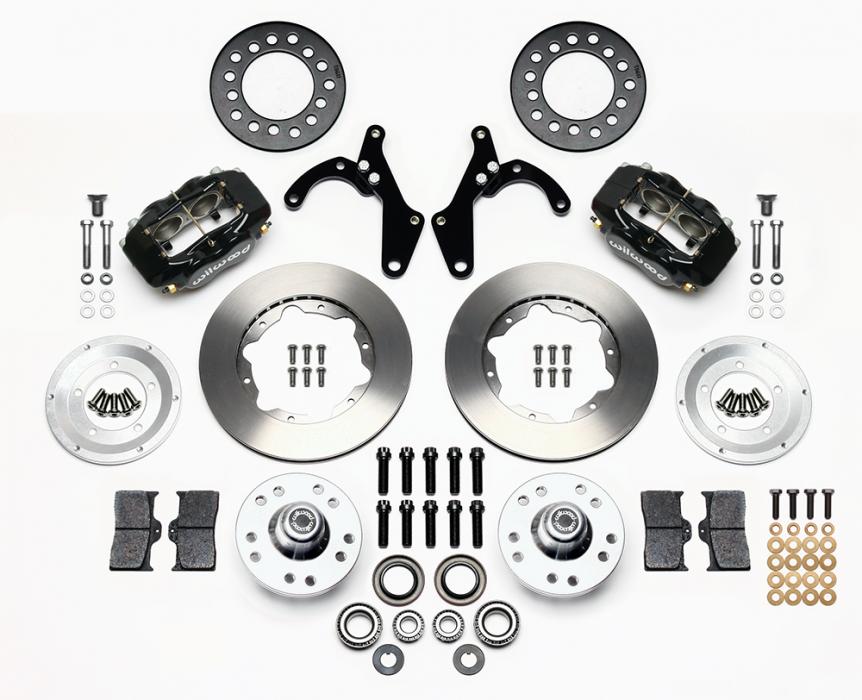

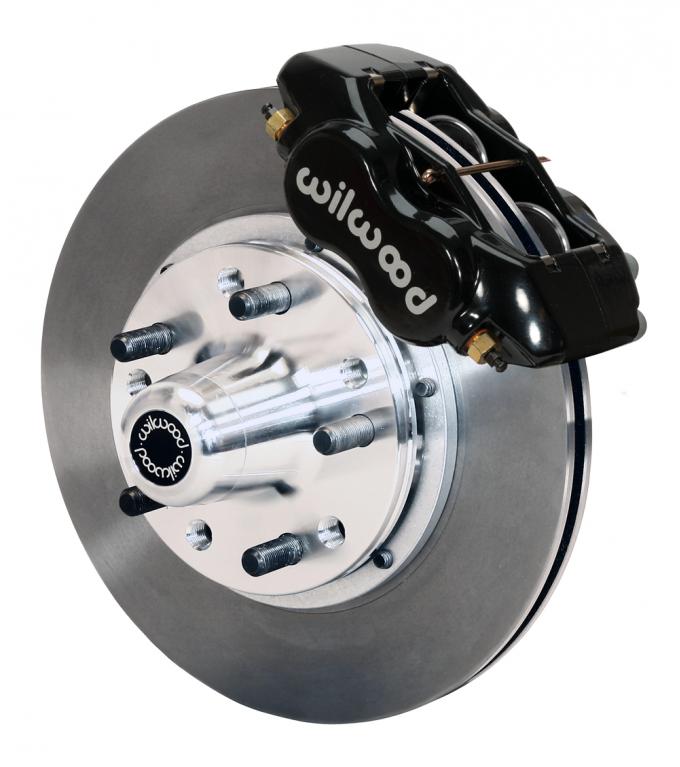

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular 55-57 Chevrolet 210 / 150 /Bel Air Passenger cars. Based on the venerable forged billet Dynalite caliper and 11.00” x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15” wheels. This kit will also work with aftermarket 14” disc brake steel wheels available from other vendors. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds756.pdf508.45KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Sedan Delivery 1955 - 1957 KIT,FRONT,CHEVY,55-57,FDLI,11.00 BLACK POWDER COAT; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, BLACK POWDER COAT
Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
with OE Drum Brake Spindle

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-5840
Material Iron
Outside Diameter (in) 11.00
Right Hand - Part No 160-5840
Style Plain Face
Surface Finish Plain
Type Ultralite HP 30
Vane Count 30 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 180-0055
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-11032
Material Aluminum
Mount Style Adapter
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Vented Rotor Offset
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Black Powder Coat
Left Hand - Part No 120-13844-BK
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13844-BK
Type Forged Dynalite Internal
(Increase / Decrease Track Width)
Caliper Type 4 - Black Powder Coat

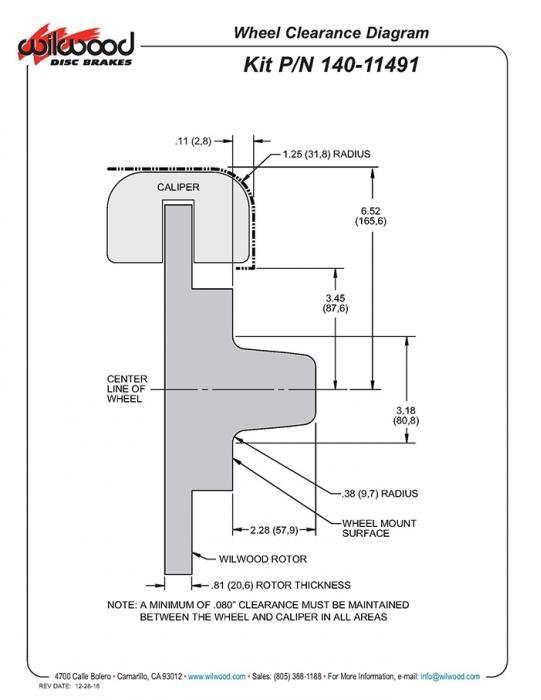

Min Wheel Diameter Req'd* 14
Mount Type Lug
Rotor Diameter 11.00
Spindle Type Factory Drum Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7699
Kit Summary
OE Hub Offset +.30
