Redline Restomotive® 1930-1990 GM / Ford / Chrysler 3 Prong Headlamp Pigtail Socket

Redline Restomotive® 1930-1990 GM / Ford / Chrysler 3 Prong Headlamp Pigtail Socket
$13.99
NEWLOW STOCK ALERT!Only 1 Left in Stock
Model: 1027719
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

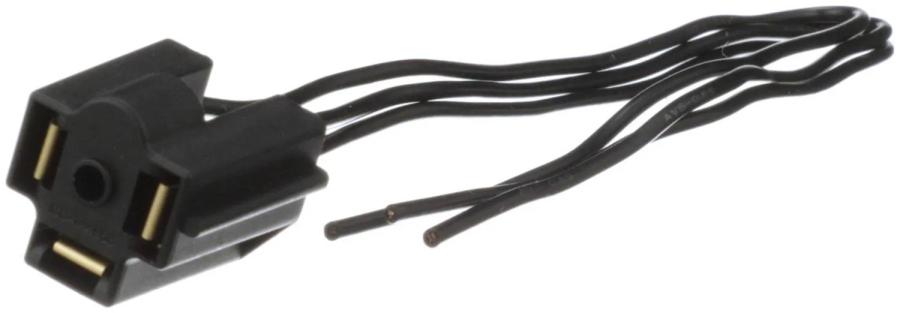

A direct-fit 3-prong headlamp pigtail socket designed for classic GM, Ford and Chrysler vehicles from 1930–1990. This pigtail provides a reliable electrical connection between the vehicle wiring harness and the headlamp bulb, restoring secure contact and eliminating intermittent lighting caused by corroded or broken sockets. Constructed for durability and heat resistance, it’s an ideal replacement for restoration projects or routine maintenance to improve headlamp performance and safety. Easy to install with basic tools, it helps preserve original wiring harnesses by allowing a clean splice rather than cutting back far into aged wiring.
Features:
  • Fits 1930–1990 GM, Ford, and Chrysler vehicles using a 3-prong headlamp socket configuration.
  • Durable, heat-resistant thermoplastic housing with solid metal terminals for reliable conductivity.
  • Replaces corroded or brittle OEM sockets to restore secure headlamp connections and eliminate flicker.
  • Pigtail design allows easy splice-in installation without extensive harness modification.
  • Ideal for restorations, maintenance, and classic car electrical repairs; improves reliability and safety.
Installation / Application:
  • Difficulty: 2/5
  • Estimated time: 15–30 minutes per side
Suggested Tools:
  • Flathead/Phillips screwdrivers (for bezel removal)
  • Wire strippers
  • Crimping tool or soldering iron
  • Butt connectors or solder and heat shrink tubing
  • Heat gun or lighter (for heat shrink)
  • Pliers
  • Dielectric grease
  • Multimeter (optional, for testing)
Instructions:
  1. Disconnect the negative battery terminal to prevent shorts.
  2. Remove the headlamp bezel/trim and extract the bulb to access the existing socket.
  3. Unplug the old socket from the bulb and inspect the harness; cut the old socket off leaving as much healthy wire as possible.
  4. Strip about 1/4"–3/8" of insulation from each conductor on both the vehicle harness and the new pigtail.
  5. Attach wires using crimp butt connectors or solder joints: match ground, low beam, and high beam conductors according to the vehicle wiring.
  6. Insulate each connection with heat shrink tubing or quality electrical tape and position tubing over the joint; apply heat to shrink.
  7. Apply a small amount of dielectric grease to the new socket contacts to reduce corrosion and improve connection.
  8. Reconnect the bulb to the new socket, reinstall the headlamp and bezel, then reconnect the battery.
  9. Test high and low beams with a multimeter or by turning on the lights; re-check connections and secure any loose wiring.
About Redline Restomotive

Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.

Crafted for both durability and aesthetic accuracy, Redline Restomotive® parts are ideal for those who value authenticity in their restoration projects. Whether restoring a car for display, personal enjoyment, or roadworthiness, customers rely on Redline Restomotive® for parts that not only fit perfectly but also contribute to the overall integrity and longevity of the vehicle. Each item is carefully engineered to replicate the fit, finish, and functionality of original components, making Redline Restomotive® a trusted name in restoration circles.

The extensive product catalog from Redline Restomotive® covers a wide variety of categories, allowing classic car owners to source everything from essential mechanical parts to subtle interior details. This comprehensive approach enables a cohesive restoration experience, where customers can confidently maintain both the exterior and interior authenticity of their vehicles. With Redline Restomotive®, every detail matters, providing the perfect balance between innovation and tradition for classic car preservation.

For more information or to explore their product offerings, you can visit retailers such as Muscle Cars & Classics, which feature a comprehensive selection of Redline Restomotive® products.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet 1500 1954
Chevrolet 3100 1959
Chevrolet 3B 1959
Chevrolet 3C 1959
Chevrolet 3D 1959
Chevrolet 3E 1959
Chevrolet 3F 1959
Chevrolet 3G 1959
Chevrolet AE Independence Truck 1931
Chevrolet AJ 1941
Chevrolet AK 1941
Chevrolet AL 1941
Chevrolet AM 1941
Chevrolet AN 1941
Chevrolet BG 1943
Chevrolet BJ 1942
Chevrolet BK 1942 - 1946
Chevrolet BL 1942 - 1945
Chevrolet BM 1942 - 1945
Chevrolet BN 1942 - 1945
Chevrolet Bel Air 1950 - 1969
Chevrolet Biscayne 1969
Chevrolet Blazer 1969 - 1990
Chevrolet C10 Panel 1960 - 1967
Chevrolet C10 Pickup 1960 - 1974
Chevrolet C10 Suburban 1967 - 1986
Chevrolet C10 1975 - 1986
Chevrolet C1500 1988 - 1990
Chevrolet C15 1982 - 1988
Chevrolet C20 Panel 1967
Chevrolet C20 Pickup 1960 - 1974
Chevrolet C20 Suburban 1967 - 1986
Chevrolet C20 1975 - 1987
Chevrolet C2500 1988 - 1990
Chevrolet C30 Panel 1960 - 1966
Chevrolet C30 Pickup 1960 - 1974
Chevrolet C30 1975 - 1986
Chevrolet C3500 1988 - 1990
Chevrolet C35 1983 - 1990
Chevrolet C40 1960 - 1962
Chevrolet CK 1946
Chevrolet Camaro 1967 - 1990
Chevrolet Chevelle 1964 - 1972
Chevrolet Confederate BB 1932
Chevrolet Corvair Truck 1961 - 1964
Chevrolet Corvette 1953 - 1990
Chevrolet DB 1934
Chevrolet DJ 1945 - 1946
Chevrolet DP 1946
Chevrolet DR 1946
Chevrolet DS 1946
Chevrolet Del Ray 1957
Chevrolet Eagle CB 1933
Chevrolet El Camino 1959 - 1987
Chevrolet Fleetline Truck 1946 - 1952
Chevrolet Fleetline 1949
Chevrolet Fleetmaster Truck 1946 - 1948
Chevrolet GC 1937
Chevrolet GD 1937
Chevrolet GE 1937
Chevrolet HC 1938
Chevrolet HD 1938
Chevrolet HE 1938
Chevrolet Impala 1969 - 1985
Chevrolet JC 1939
Chevrolet JD 1939
Chevrolet K10 Pickup 1960 - 1974
Chevrolet K10 Suburban 1967 - 1986
Chevrolet K10 1975 - 1986
Chevrolet K1500 1988 - 1990
Chevrolet K20 Panel 1967
Chevrolet K20 Pickup 1960 - 1974
Chevrolet K20 Suburban 1967 - 1986
Chevrolet K20 1975 - 1986
Chevrolet K2500 1988 - 1990
Chevrolet K30 Pickup 1968 - 1974
Chevrolet K30 1977 - 1986
Chevrolet K3500 1988 - 1990
Chevrolet K5 Blazer 1975 - 1986
Chevrolet KC 1940
Chevrolet KD 1940
Chevrolet KF 1940
Chevrolet KP 1940
Chevrolet LUV 1975 - 1982
Chevrolet Luv Pickup 1972 - 1974
Chevrolet Master Deluxe Truck 1935 - 1937
Chevrolet Master Truck 1937 - 1938
Chevrolet Nomad 1955 - 1957
Chevrolet Nova 1969 - 1979
Chevrolet One-Fifty Series 1953 - 1957
Chevrolet P10 Series 1960 - 1967
Chevrolet P20 Series 1960 - 1967
Chevrolet P30 Series 1960 - 1967
Chevrolet Pickup 1936
Chevrolet R10 Suburban 1987 - 1988
Chevrolet R10 1987
Chevrolet R1500 Suburban 1989 - 1990
Chevrolet R20 Suburban 1987 - 1988
Chevrolet R20 1987 - 1988
Chevrolet R2500 Suburban 1989 - 1990
Chevrolet R2500 1989
Chevrolet R30 1987 - 1988
Chevrolet R3500 1989 - 1990
Chevrolet S10 Blazer 1983 - 1990
Chevrolet S10 1982 - 1990
Chevrolet Sedan Delivery 1947 - 1960
Chevrolet Standard Truck 1935 - 1936
Chevrolet Suburban 1947 - 1990
Chevrolet Tracker 1989 - 1990
Chevrolet Truck 1935 - 1960
Chevrolet Two-Ten Series 1953 - 1957
Chevrolet Universal Truck 1930
Chevrolet V10 Suburban 1987 - 1988
Chevrolet V10 1987
Chevrolet V1500 Suburban 1989 - 1990
Chevrolet V20 Suburban 1987 - 1988
Chevrolet V20 1987
Chevrolet V2500 Suburban 1989 - 1990
Chevrolet V30 1987 - 1988
Chevrolet V3500 1989 - 1990
Chevrolet VA 1939
Chevrolet WA 1940
Chevrolet YR 1941
Chrysler 300 1965 - 1971
Chrysler Conquest 1987 - 1989
Chrysler Cordoba 1975 - 1983
Chrysler Imperial 1967 - 1975
Chrysler New Yorker 1965 - 1976
Chrysler Newport 1965 - 1976
Chrysler Town & Country 1965 - 1976
Dodge Challenger 1970 - 1974
Dodge Charger 1966 - 1976
Dodge Coronet 1965 - 1976
Dodge D100 Pickup 1968 - 1974
Dodge D100 Series 1961 - 1967
Dodge D100 1975 - 1979
Dodge D150 1980
Dodge Dart 1965 - 1976
Dodge Monaco 1965 - 1976
Dodge Polara 1965 - 1973
Ford Falcon 1967
Ford Mustang 1964 - 1973
GMC 100-22 1947 - 1955
GMC 100-24 1953 - 1954
GMC 1000 Series 1960 - 1965
GMC 1000 1966
GMC 100 1951 - 1959
GMC 102-22 1952 - 1953
GMC 150-22 1947 - 1955
GMC 150-24 1953 - 1954
GMC 1500 Series 1960 - 1965
GMC 1500 1966
GMC 150 1951 - 1959
GMC 250-22 1951 - 1955
GMC 250-24 1953 - 1954
GMC 2500 Series 1960 - 1965
GMC 2500 1966
GMC 250 1951 - 1959
GMC 253-22 1952 - 1953
GMC 280-22 1951 - 1955
GMC 300-24 1953 - 1954
GMC 3000 1960 - 1966
GMC 300 1951 - 1959
GMC 350-24 1951 - 1954
GMC 350-27 1951 - 1954
GMC 350-8 1955 - 1959
GMC 3500 1960 - 1966
GMC 370 1951 - 1959
GMC AC100 1939 - 1940
GMC AC150 1939 - 1940
GMC AC250 1939 - 1940
GMC AC252 1940
GMC AC300 1940
GMC AF230 1939
GMC AF240 1940 - 1942
GMC AFP230 1939
GMC AFP240 1940 - 1942
GMC Astro 1981 - 1988
GMC B3500 1964 - 1965
GMC B6000 1980 - 1990
GMC Brigadier 1981 - 1988
GMC C15 Suburban 1975 - 1978
GMC C15/C1500 Pickup 1967 - 1974
GMC C15/C1500 Suburban 1967 - 1974
GMC C1500 Suburban 1979 - 1986
GMC C1500 1979 - 1990
GMC C15 1975 - 1978
GMC C25 Suburban 1975 - 1978
GMC C25/C2500 Pickup 1967 - 1974
GMC C25/C2500 Suburban 1967 - 1974
GMC C2500 Suburban 1979 - 1986
GMC C2500 1979 - 1990
GMC C25 1975 - 1978
GMC C35/C3500 Pickup 1967 - 1974
GMC C3500 1979 - 1990
GMC C35 1975 - 1978
GMC C5000 Topkick 1990
GMC C5000 1979 - 1990
GMC C6000 Topkick 1990
GMC C6000 1979 - 1990
GMC C7000 Topkick 1990
GMC C7000 1979 - 1990
GMC CC100 1941 - 1947
GMC CC101 1945 - 1947
GMC CC102 1945 - 1947
GMC CC150 1941 - 1947
GMC CC250 1941 - 1947
GMC CC260 1941 - 1947
GMC CC300 1941 - 1942
GMC CCV100 1941 - 1947
GMC CCX250 1941 - 1947
GMC Caballero 1978 - 1987
GMC EC100 1941 - 1947
GMC EC101 1945 - 1947
GMC EC102 1945 - 1947
GMC EC150 1941 - 1947
GMC EC152 1945 - 1947
GMC EC250 1947
GMC EC251 1947
GMC EC252 1947
GMC EC280 1947
GMC EC282 1947
GMC EC283 1947
GMC EC350 1946
GMC EF240 1946 - 1947
GMC EF241 1947 - 1949
GMC EF242 1948 - 1949
GMC EF350 1946
GMC EFP240 1946 - 1947
GMC F350-24 1951 - 1954
GMC F350-27 1951 - 1954
GMC F350 1953 - 1959
GMC F370 1951 - 1959
GMC FC100-22 1952
GMC FC100 1947 - 1952
GMC FC101 1947 - 1950
GMC FC102 1947 - 1950
GMC FC150 1947 - 1952
GMC FC152 1947 - 1950
GMC FC250 1947 - 1950
GMC FC251 1947 - 1950
GMC FC252 1947 - 1950
GMC FC253 1947 - 1950
GMC FC280 1947 - 1950
GMC FC281 1947 - 1950
GMC FC283 1947
GMC FC300 1947 - 1950
GMC FC350 1947 - 1950
GMC FCS300 1947 - 1950
GMC FCS350 1947 - 1950
GMC FF350 1947 - 1950
GMC FM340 1955 - 1959
GMC FM350 1955 - 1959
GMC FP152 1949 - 1950
GMC G1000 Series 1963 - 1966
GMC G15/G1500 Van 1967 - 1974
GMC G1500 1964 - 1990
GMC G15 1975 - 1978
GMC G25/G2500 Van 1967 - 1974
GMC G2500 1979 - 1990
GMC G25 1975 - 1978
GMC G35/G3500 Van 1970 - 1974
GMC G3500 1979 - 1990
GMC G35 1975 - 1978
GMC General 1981 - 1988
GMC I1000 1964 - 1966
GMC I1500 1965 - 1966
GMC I2500 1965 - 1966
GMC I3500 1966
GMC Jimmy 1970 - 1990
GMC K1000 Pickup 1966
GMC K1000 1966
GMC K15 Suburban 1975 - 1978
GMC K15/K1500 Pickup 1966 - 1974
GMC K15/K1500 Suburban 1967 - 1974
GMC K1500 Suburban 1979 - 1986
GMC K1500 1979 - 1990
GMC K15 1975 - 1978
GMC K25 Suburban 1975 - 1978
GMC K25/K2500 Pickup 1966 - 1974
GMC K25/K2500 Suburban 1967 - 1974
GMC K2500 Suburban 1979 - 1986
GMC K2500 1979 - 1990
GMC K25 1975 - 1978
GMC K35/K3500 Pickup 1968 - 1974
GMC K3500 1979 - 1990
GMC K35 1977 - 1978
GMC L3500 1965 - 1967
GMC LI3500 1966 - 1967
GMC M300 1954 - 1959
GMC M340 1955 - 1956
GMC M350-24 1951 - 1954
GMC M350-27 1951 - 1954
GMC P1000 1966
GMC P15/P1500 Van 1967 - 1974
GMC P150-22 1951 - 1954
GMC P1500 1979 - 1980
GMC P152 1950 - 1951
GMC P15 1975 - 1978
GMC P25/P2500 Van 1967 - 1974
GMC P2500 1979 - 1989
GMC P252 1951
GMC P253 1951
GMC P25 1975 - 1978
GMC P35/P3500 Van 1967 - 1974
GMC P3500 1979 - 1990
GMC P35 1975 - 1978
GMC P4500 1979 - 1990
GMC P6000 1983 - 1990
GMC P60 1983 - 1990
GMC PB1000 Series 1961 - 1966
GMC PB15 Series 1966
GMC PB1500 Series 1963 - 1965
GMC PB25 Series 1966
GMC PB2500 Series 1963 - 1965
GMC PB2500 Van 1966
GMC PB3500 Van 1966
GMC PM150-22 1952 - 1954
GMC PM150-24 1952 - 1954
GMC PM150 1953 - 1959
GMC PM151 1955 - 1959
GMC PM152-22 1952 - 1954
GMC PM152 1952 - 1959
GMC PM153 1955 - 1959
GMC PM250-24 1954
GMC PM250 1955 - 1959
GMC PM251 1956 - 1959
GMC PM252 1952 - 1958
GMC PM253 1952 - 1958
GMC PV1000 1960
GMC R1500 Suburban 1987 - 1990
GMC R1500 1987
GMC R2500 Suburban 1987 - 1990
GMC R2500 1987 - 1989
GMC R3500 1987 - 1990
GMC S15 Jimmy 1983 - 1990
GMC S15 1982 - 1990
GMC S300-24 1951 - 1954
GMC S300 1955 - 1959
GMC S370 1951 - 1959
GMC Safari 1985 - 1990
GMC Sprint 1971 - 1977
GMC Suburban 1955 - 1966
GMC T145 1938
GMC T14A 1937 - 1938
GMC T14B 1937 - 1938
GMC T14 1936
GMC T155 1938
GMC T15 1938
GMC T16L 1935 - 1937
GMC Tracker 1989 - 1990
GMC Transit Bus 1981 - 1987
GMC Transmode 1973 - 1974
GMC Truck 1945 - 1960
GMC V1500 Suburban 1987 - 1990
GMC V1500 1987
GMC V2500 Suburban 1987 - 1990
GMC V2500 1987
GMC V3000 Forward Control 1960 - 1963
GMC V3500 1987 - 1990
GMC W5500 Forward 1988 - 1990
GMC W6500 Forward 1987 - 1990
GMC W7500 Forward 1984 - 1990
Mercury Comet 1967
Oldsmobile Cutlass 1961 - 1977
Plymouth Barracuda 1965 - 1974
Plymouth Belvedere 1965 - 1970
Plymouth Cuda 1970 - 1974
Plymouth Duster 1970 - 1976
Plymouth Fury 1965 - 1974
Plymouth GTX 1967 - 1971
Plymouth Road Runner 1968 - 1975
Plymouth Satellite 1965 - 1974
Plymouth Scamp 1972 - 1976
Plymouth Superbird 1970
Plymouth VIP 1967
Plymouth Valiant 1965 - 1976
Pontiac Firebird 1967 - 1985
Pontiac GTO 1964 - 1973

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

Redline Restomotive® 1930-1990 GM / Ford / Chrysler 3 Prong Headlamp Pigtail Socket:
Reason for Inquiry:

Related Products

Ford Thunderbird Headlight Blb Pgtl, For 3-Prong Sealed Beam, Low Bms In 2 Or 4 Lamp Sys, 58-66
Ford Thunderbird Headlight Blb Pgtl, For 3-Prong Sealed Beam, Low Bms In 2 Or 4 Lamp Sys, 58-66
Model: 3072846
Condition: NEW
$40.99 ea $34.92
14.8%
Redline Restomotive® 1968-1987 Chevy Truck Side Marker Light Socket
Redline Restomotive® 1968-1987 Chevy Truck Side Marker Light Socket
Model: 3034618
Condition: NEW
$5.99 ea
Headlight Socket Wire - PVC Wire - Left - With Full Length Ground Wire - With Grommet - 22 Long
Headlight Socket Wire - PVC Wire - Left - With Full Length Ground Wire - With Grommet - 22 Long
Model: 3010344
Condition: NEW
$87.99 ea
Firewall To Headlight Junction Wire
Firewall To Headlight Junction Wire
Model: 3010347
Condition: NEW
$404.99 ea $340.06
16%
United Pacific Fog Lamp Wiring Harness Kit 34266
United Pacific Fog Lamp Wiring Harness Kit 34266
Model: 3128781
Condition: NEW
$65.99 ea $46.96
28.8%

Frequently bought together

SeatBelt Solutions Non Retractable Lap Belt Hardware Kit HW#2
SeatBelt Solutions Non Retractable Lap Belt Hardware Kit HW#2
Model: 1010097
Condition: NEW
$14.99 ea
Redline Restomotive® Window Crank & Lock Knob / Handle Retaining Clip Set
Redline Restomotive® Window Crank & Lock Knob / Handle Retaining Clip Set
Model: 1002078
Condition: NEW
$7.99 kt
Corvette Steering Wheel, Black Leather, With Chrome Aluminum 3-Spokes, 1963-1975 & 1977-1982
Corvette Steering Wheel, Black Leather, With Chrome Aluminum 3-Spokes, 1963-1975 & 1977-1982
Model: 1001580
Condition: NEW
$181.99 ea
Redline Restomotive® 1971-1991 GM Car & Truck Windshield Washer Pump
Redline Restomotive® 1971-1991 GM Car & Truck Windshield Washer Pump
Model: 1024813
Condition: NEW
$36.99 ea
Redline Restomotive® 1937-1981 GM Car Glove Box Door Bumpers
Redline Restomotive® 1937-1981 GM Car Glove Box Door Bumpers
Model: 3020293
Condition: NEW
$4.99 pr
