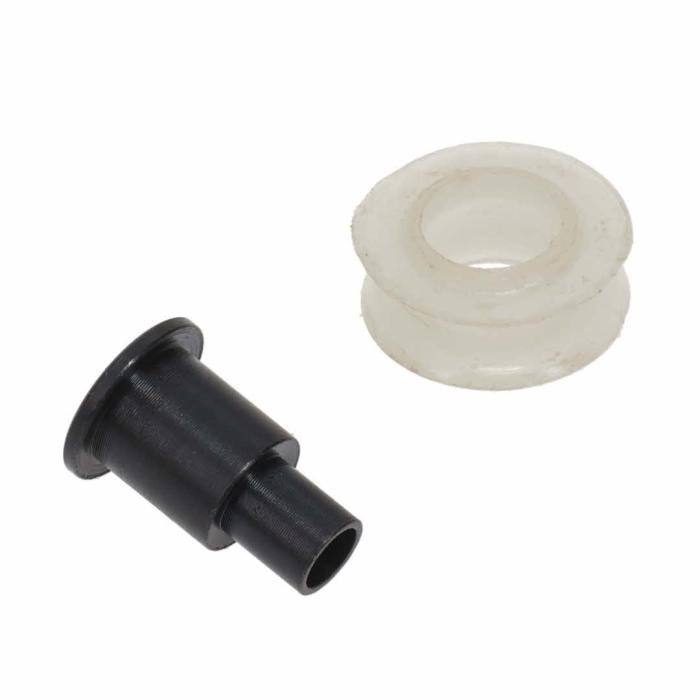

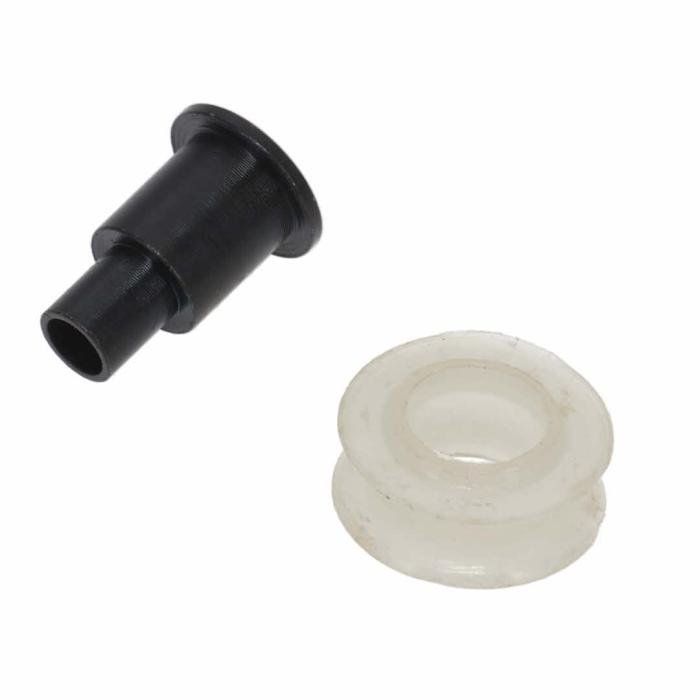

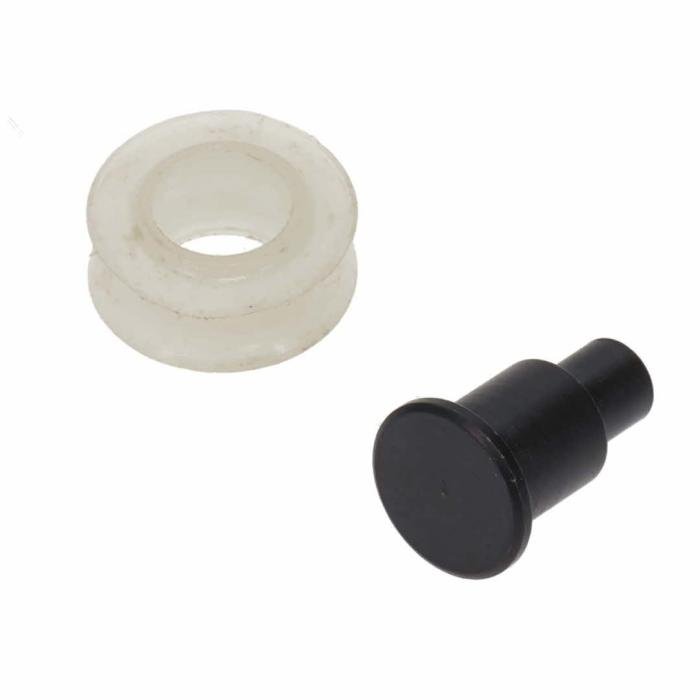

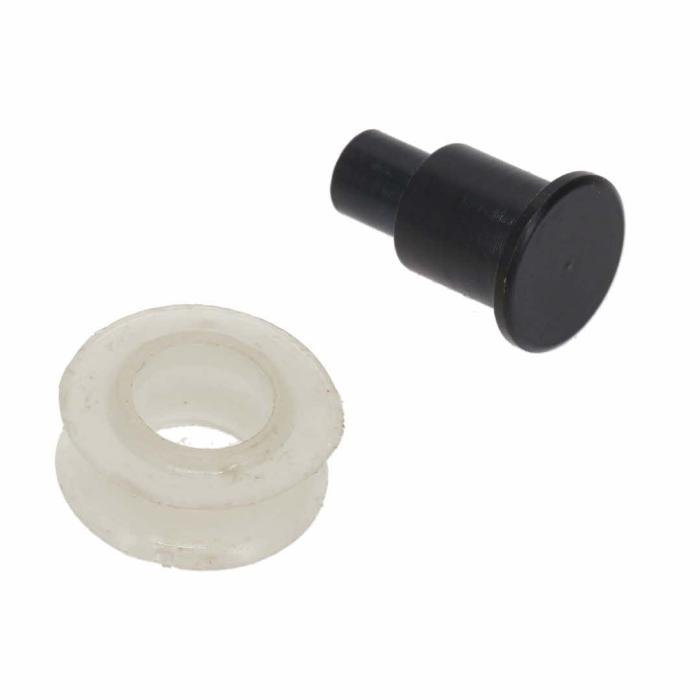

The Window Regulator Roller & Rivet Replacement is an OE-style service component designed for 1947–1966 Chevy and GMC pickup trucks and Suburban models. This part replaces a single worn window regulator roller and its corresponding rivet, restoring proper engagement between the window regulator arm and the window channel. Small but critical, this component plays an important role in maintaining smooth, controlled window operation on classic truck doors.
Original window regulator rollers are subject to decades of wear, corrosion, and material breakdown. As rollers flatten, seize, or detach from the regulator arm, window movement can become inconsistent, misaligned, or unstable. Replacing a damaged roller helps return the regulator to its intended function while preserving the original regulator assembly—an important consideration for restorers working with factory components.
Manufactured to OE-style dimensions, this replacement roller is designed to match the original diameter and profile used in GM truck window regulators from the late 1940s through the mid-1960s. The included rivet allows the roller to be correctly secured to the regulator arm, maintaining proper alignment within the window channel. When installed in the correct location, the roller supports consistent tracking of the door glass and helps reduce binding during window operation.
This replacement is correct for a wide range of Advance-Design, Task Force, and early C/K series Chevy and GMC trucks, including 3100 and 3600 models, as well as later C10, C20, C30, K10, K20, and K30 pickups. It is also applicable to Suburban models within the listed year ranges. This makes it a versatile solution for addressing isolated regulator wear without replacing the entire assembly.
Offered as X-Parts by Auto Metal Direct, this window regulator roller and rivet set is a third-party OE-style replacement selected to meet AMD’s standards for fit and application accuracy. X-Parts provide dependable solutions for restorers seeking correct replacement components when AMD all-new tooling parts are not required.
Auto Metal Direct is a team of true car guys with years of experience in sheet metal reproduction, car restoration and paint/body work. We believe that quality is not subjective! Our mission is to provide the best customer experience for the Ford, Mopar and GM classic car markets - both in products and in service.
Our panels are made from proper gauge steel and include all correct-as-original clips, tabs, flanges, bends and seams. Each time a prototype body panel comes off of a new tooling, we test fit it on a car. The marked up prototype is then used to change and improve the tools, and a new prototype is produced. This procedure might be repeated multiple times but, once the part is finally approved, you can be assured of a quality part.
| Make | Model | Years |
| Chevrolet | 1500 | 1954 |
| Chevrolet | 3100 | 1959 |
| Chevrolet | 3B | 1959 |
| Chevrolet | 3C | 1959 |
| Chevrolet | 3D | 1959 |
| Chevrolet | 3E | 1959 |
| Chevrolet | 3F | 1959 |
| Chevrolet | 3G | 1959 |
| Chevrolet | C10 Pickup | 1960 - 1966 |
| Chevrolet | C20 Pickup | 1960 - 1966 |
| Chevrolet | C30 Pickup | 1960 - 1966 |
| Chevrolet | Fleetline Truck | 1947 - 1952 |
| Chevrolet | Fleetmaster Truck | 1947 - 1948 |
| Chevrolet | K10 Pickup | 1960 - 1966 |
| Chevrolet | K20 Pickup | 1960 - 1966 |
| Chevrolet | Sedan Delivery | 1947 - 1959 |
| Chevrolet | Suburban | 1947 - 1966 |
| Chevrolet | Truck | 1947 - 1958 |
| GMC | 100-22 | 1947 - 1955 |
| GMC | 100-24 | 1953 - 1954 |
| GMC | 100 | 1951 - 1959 |
| GMC | 102-22 | 1952 - 1953 |
| GMC | 150-22 | 1947 - 1955 |
| GMC | 150-24 | 1953 - 1954 |
| GMC | 150 | 1951 - 1959 |
| GMC | 250-22 | 1951 - 1955 |
| GMC | 250-24 | 1953 - 1954 |
| GMC | 250 | 1951 - 1959 |
| GMC | 253-22 | 1952 - 1953 |
| GMC | 280-22 | 1951 - 1955 |
| GMC | 300-24 | 1953 - 1954 |
| GMC | 300 | 1951 - 1959 |
| GMC | 350-24 | 1951 - 1954 |
| GMC | 350-27 | 1951 - 1954 |
| GMC | 350-8 | 1955 - 1959 |
| GMC | 370 | 1951 - 1959 |
| GMC | CC100 | 1947 |
| GMC | CC101 | 1947 |
| GMC | CC102 | 1947 |
| GMC | CC150 | 1947 |
| GMC | CC250 | 1947 |
| GMC | CC260 | 1947 |
| GMC | CCV100 | 1947 |
| GMC | CCX250 | 1947 |
| GMC | EC100 | 1947 |
| GMC | EC101 | 1947 |
| GMC | EC102 | 1947 |
| GMC | EC150 | 1947 |
| GMC | EC152 | 1947 |
| GMC | EC250 | 1947 |
| GMC | EC251 | 1947 |
| GMC | EC252 | 1947 |
| GMC | EC280 | 1947 |
| GMC | EC282 | 1947 |
| GMC | EC283 | 1947 |
| GMC | EF240 | 1947 |
| GMC | EF241 | 1947 - 1949 |
| GMC | EF242 | 1948 - 1949 |
| GMC | EFP240 | 1947 |
| GMC | F350-24 | 1951 - 1954 |
| GMC | F350-27 | 1951 - 1954 |
| GMC | F350 | 1953 - 1959 |
| GMC | F370 | 1951 - 1959 |
| GMC | FC100-22 | 1952 |
| GMC | FC100 | 1947 - 1952 |
| GMC | FC101 | 1947 - 1950 |
| GMC | FC102 | 1947 - 1950 |
| GMC | FC150 | 1947 - 1952 |
| GMC | FC152 | 1947 - 1950 |
| GMC | FC250 | 1947 - 1950 |
| GMC | FC251 | 1947 - 1950 |
| GMC | FC252 | 1947 - 1950 |
| GMC | FC253 | 1947 - 1950 |
| GMC | FC280 | 1947 - 1950 |
| GMC | FC281 | 1947 - 1950 |
| GMC | FC283 | 1947 |
| GMC | FC300 | 1947 - 1950 |
| GMC | FC350 | 1947 - 1950 |
| GMC | FCS300 | 1947 - 1950 |
| GMC | FCS350 | 1947 - 1950 |
| GMC | FF350 | 1947 - 1950 |
| GMC | FM340 | 1955 - 1959 |
| GMC | FM350 | 1955 - 1959 |
| GMC | FP152 | 1949 - 1950 |
| GMC | K15/K1500 Pickup | 1966 |
| GMC | K25/K2500 Pickup | 1966 |
| GMC | M300 | 1954 - 1959 |
| GMC | M340 | 1955 - 1956 |
| GMC | M350-24 | 1951 - 1954 |
| GMC | M350-27 | 1951 - 1954 |
| GMC | P150-22 | 1951 - 1954 |
| GMC | P152 | 1950 - 1951 |
| GMC | P252 | 1951 |
| GMC | P253 | 1951 |
| GMC | PM150-22 | 1952 - 1954 |
| GMC | PM150-24 | 1952 - 1954 |
| GMC | PM150 | 1953 - 1959 |
| GMC | PM151 | 1955 - 1959 |
| GMC | PM152-22 | 1952 - 1954 |
| GMC | PM152 | 1952 - 1959 |
| GMC | PM153 | 1955 - 1959 |
| GMC | PM250-24 | 1954 |
| GMC | PM250 | 1955 - 1959 |
| GMC | PM251 | 1956 - 1959 |
| GMC | PM252 | 1952 - 1958 |
| GMC | PM253 | 1952 - 1958 |
| GMC | S300-24 | 1951 - 1954 |
| GMC | S300 | 1955 - 1959 |
| GMC | S370 | 1951 - 1959 |
| GMC | Suburban | 1955 - 1966 |
| GMC | Truck | 1947 - 1959 |
| Brand | Auveco |
