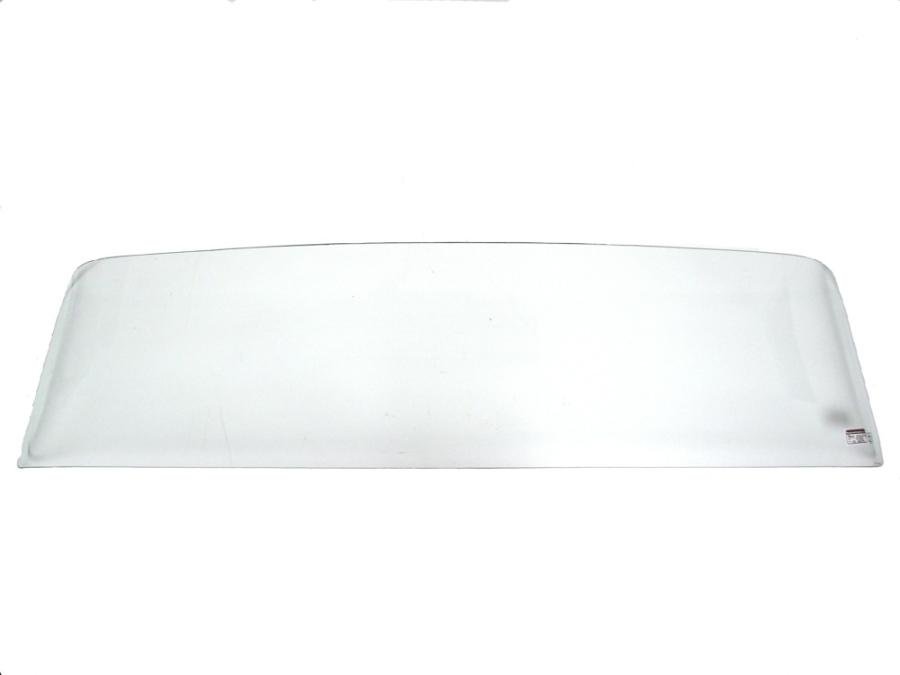

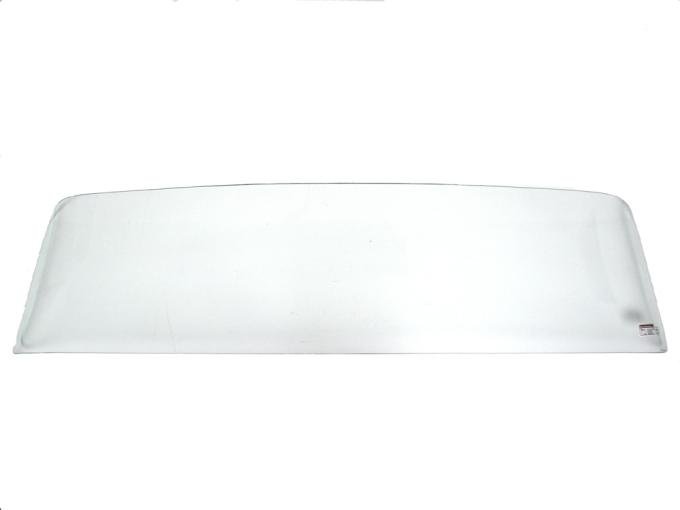

Tempered clear rear window glass engineered as a direct-replacement for Second Series GM rear openings. This OEM-style glass restores original visibility, weather sealing, and structural integrity while providing the safety benefits of tempered glass (breaks into small, less-dangerous fragments). Ideal for classic car restoration or maintenance, it delivers durable clarity, corrosion-resistant edges, and a precise fit when matched to the correct DB00409 part number—verify vehicle fitment prior to purchase for exact years and models.
Features:
- Fits select 2nd Series GM cars—verify OEM part number DB00409 for exact years and models.
- Tempered clear safety glass designed for rear window replacement and restoration.
- OEM-style profile for accurate alignment, sealing, and original appearance.
- Durable construction resists chips and provides long-lasting clarity.
- Helps restore proper weather sealing and reduces wind noise and leaks.
- Ready for installation with standard automotive urethane and trim components.
Installation / Application:
- Difficulty: 3/5
- Estimated time: 1–2 hours (plus adhesive cure time up to 24 hours per urethane manufacturer)
Instructions:
- Park vehicle on level ground and disconnect the battery if required for trim removal; wear safety gear.
- Remove interior trim, molding, and headliner components as needed to access the rear glass perimeter.
- Carefully remove old molding and cut or pry away the existing urethane sealant; lift out the old glass using suction cups.
- Clean the pinchweld/flange thoroughly—remove old adhesive, rust, and debris; vacuum the cavity to clear glass fragments.
- Apply primer to the clean flange and to the glass edge where recommended by adhesive manufacturer; allow primer to flash per instructions.
- Load urethane into the caulking gun and apply a continuous, even bead to the flange following vehicle-specific bead profile.
- Using suction cups, align the new tempered glass with the flange and lower it into the urethane bead, pressing evenly to ensure full contact.
- Temporarily secure the glass with masking tape or original moldings as required; reinstall exterior and interior trim pieces.
- Allow adhesive to cure per urethane manufacturer recommendations (many require several hours to reach handling strength and up to 24 hours for full cure).
- After curing, check for proper sealing and any leaks with a water test; reassemble remaining interior components and clean the glass.
About Precision Replacement Parts
Since 1986 Precision Replacement Parts has been a trusted name in the Automotive Glass Industry.
Our knowledge and experience in manufacturing millions of extruded and molded EPDM Rubber, PVC and HDPE based plastics, and various stamped and extruded metal products for the classic and late model industries has allowed Precision to expand our services into multiple product markets.
Along with our own USA based production facility, Precision also partners with 25 different manufactures worldwide with a reputation as a global leader supplying OEM and replacement products to a number of different industries. Our partnerships along with our own in-house manufacturing and fabrication capability gives Precision a unique position in helping to meet the expanding needs of customers everywhere, providing them with a sustained competitive advantage.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
3100 |
1959 |
| Chevrolet |
3B |
1959 |
| Chevrolet |
3C |
1959 |
| Chevrolet |
3D |
1959 |
| Chevrolet |
3E |
1959 |
| Chevrolet |
3F |
1959 |
| Chevrolet |
3G |
1959 |
| Chevrolet |
Truck |
1955 - 1958 |
| GMC |
Truck |
1955 - 1959 |
