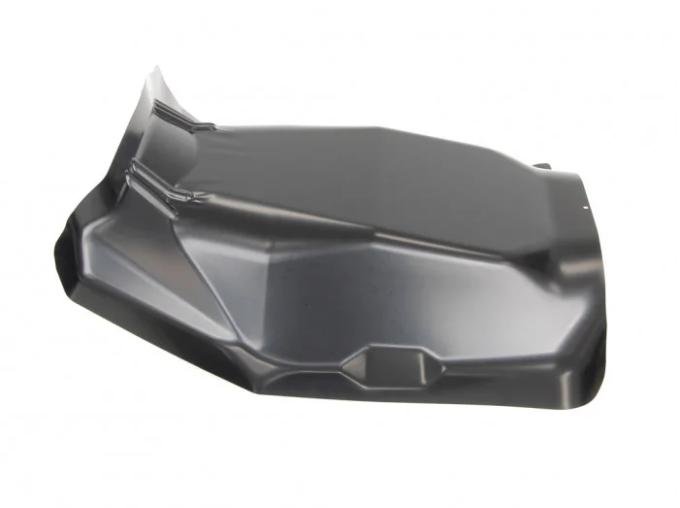

Transmission Tunnel - Performance Style - 81-91 Chevy GMC C/K Squarebody Truck Blazer Jimmy Suburban including the C10 C20 C30 K10 K20 K30 trucks and suv's
Note: Requires some reshaping at the back of the tunnel for the 81-83 model trucks.

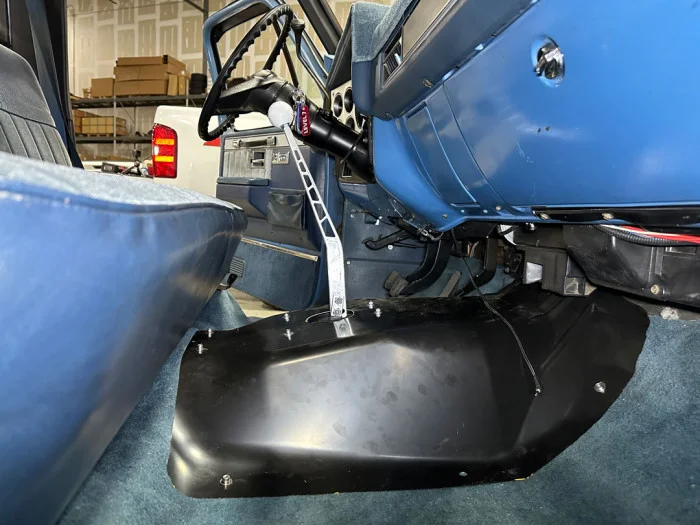

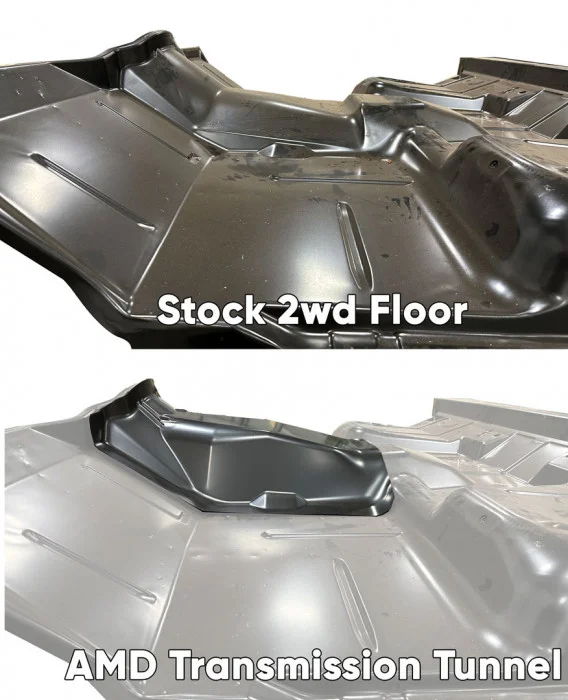

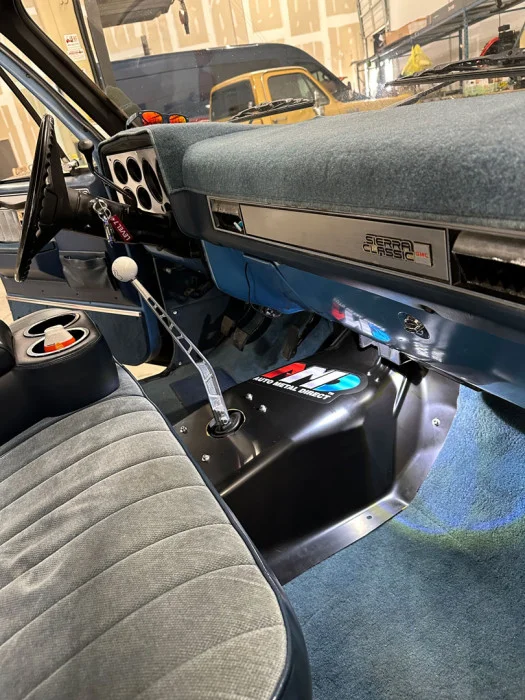

Designed from the 84-up GM 4wd Floor Pans with Transmission swaps in mind. This transmission tunnel will give you the clearance of the factory 4x4 floor without having to replace your entire floor pan. Be sure to verify your application prior to ordering, this cover was designed to allow you to modify as needed or for custom applications not requiring floor shift or transfer case cut outs.

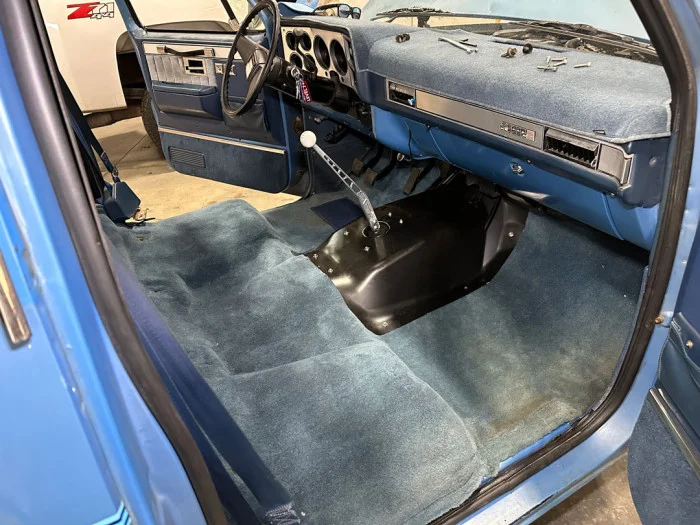

We have tested a 4WD Carpet Kit with this Tunnel installed and it worked well.
Transmission Tunnel - Performance Style for 81-91 Chevy GMC C/K Squarebody Trucks, Blazer, Jimmy, Suburban
Enhance your 1981-1991 Chevy GMC C/K Squarebody Truck, Blazer, Jimmy, or Suburban with our Performance Style Transmission Tunnel. This high-quality transmission tunnel is designed to provide optimal clearance for transmission swaps, offering the benefits of the factory 4x4 floor without the need to replace the entire floor pan. Suitable for C10, C20, C30, K10, K20, and K30 models, this tunnel is perfect for custom applications and modifications.

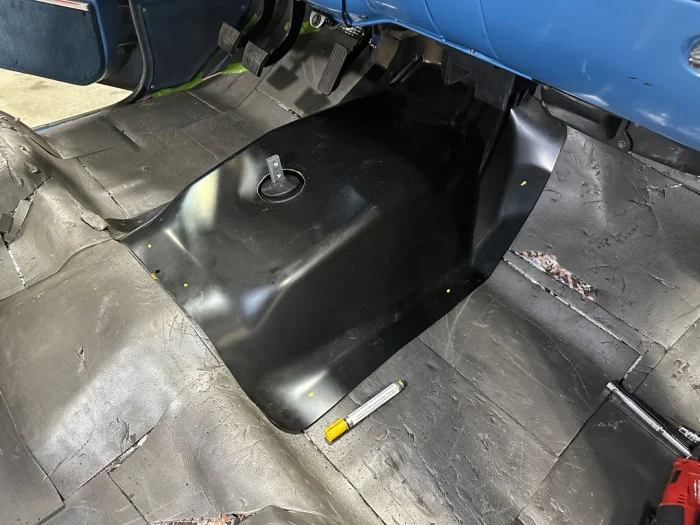

Installation of the Performance Style Transmission Tunnel is straightforward, but it's essential to verify your application prior to ordering to ensure a perfect fit. With this tunnel, you can achieve the clearance and functionality you need for your Chevy GMC C/K Squarebody Truck, Blazer, Jimmy, or Suburban without compromising on quality or performance.
Auto Metal Direct is a team of true car guys with years of experience in sheet metal reproduction, car restoration and paint/body work. We believe that quality is not subjective! Our mission is to provide the best customer experience for the Ford, Mopar and GM classic car markets - both in products and in service.
Our panels are made from proper gauge steel and include all correct-as-original clips, tabs, flanges, bends and seams. Each time a prototype body panel comes off of a new tooling, we test fit it on a car. The marked up prototype is then used to change and improve the tools, and a new prototype is produced. This procedure might be repeated multiple times but, once the part is finally approved, you can be assured of a quality part.
| Make | Model | Years |
| Chevrolet | Blazer | 1987 - 1991 |
| Chevrolet | C10 Suburban | 1981 - 1986 |
| Chevrolet | C10 | 1981 - 1986 |
| Chevrolet | C20 Suburban | 1981 - 1986 |
| Chevrolet | C20 | 1981 - 1987 |
| Chevrolet | C30 | 1981 - 1986 |
| Chevrolet | K10 Suburban | 1981 - 1986 |
| Chevrolet | K10 | 1981 - 1986 |
| Chevrolet | K20 Suburban | 1981 - 1986 |
| Chevrolet | K20 | 1981 - 1986 |
| Chevrolet | K30 | 1981 - 1986 |
| Chevrolet | K5 Blazer | 1981 - 1986 |
| Chevrolet | S10 Blazer | 1983 - 1986 |
| Chevrolet | Suburban | 1987 - 1991 |
| GMC | C1500 Suburban | 1981 - 1986 |
| GMC | C1500 | 1981 - 1986 |
| GMC | C2500 Suburban | 1981 - 1986 |
| GMC | C2500 | 1981 - 1986 |
| GMC | C3500 | 1981 - 1991 |
| GMC | Jimmy | 1981 - 1991 |
| GMC | K1500 Suburban | 1981 - 1986 |
| GMC | K1500 | 1981 - 1986 |
| GMC | K2500 Suburban | 1981 - 1986 |
| GMC | K2500 | 1981 - 1986 |
| GMC | K3500 | 1981 - 1991 |
| GMC | R1500 Suburban | 1987 - 1991 |
| GMC | R2500 Suburban | 1987 - 1991 |
| GMC | V1500 Suburban | 1987 - 1991 |
| GMC | V2500 Suburban | 1987 - 1991 |
| Brand | AMD |
| Height | 25 in |
| Length | 6 in |
| Weight | 6 lbs |
| Width | 24 in |
