FiTech Inline Frame Mount Fuel Delivery Kit, 255 LPH

• Use This Kit With Any Aftermarket EFI Conversion Kit That Supports 600-625HP
• Kit Includes A 255LPH Fuel Pump, Pre &amp Post Fuel Filters, Necessary Hose Ends, Billet Fuel Pump, Clamp &amp 25 Feet Of EFI Rated Hose
• Notes: Mounts Your Fuel Pump Externally Along The Frame Rail

• Quality Level: High Performance Upgrade
• Max Flywheel Horsepower: 625
• Supports Forced Induction &amp Nitrous: Yes
• Fuel Pump Size: 255LPH
• Fuel Line Diameter: 3/8 Inch
• Fuel Line Length: 20 Feet
• Fuel Pump Inlet / Outlet: -8 AN Inlet &amp -6 AN Outlet

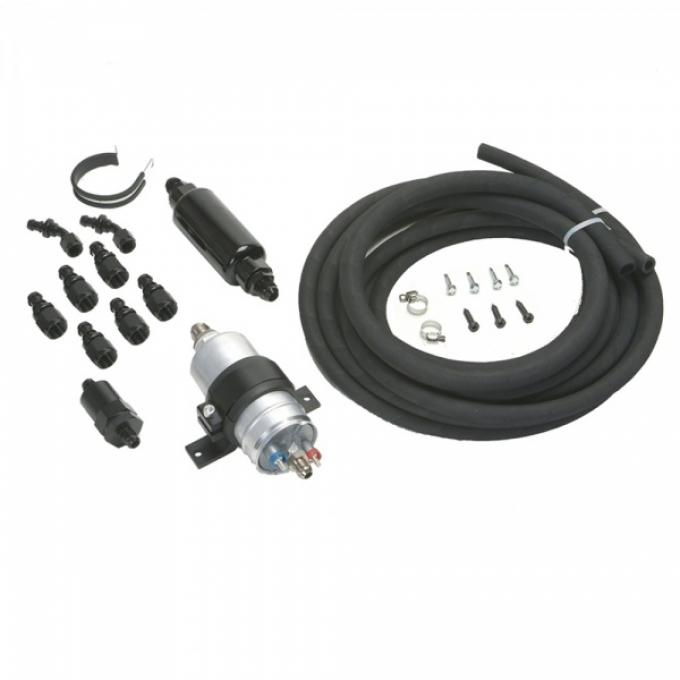

• What's In The Box: 255LPH Fuel Pump, Pre &amp Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp &amp 25 Feet Of EFI Rated Hose
• Where It's Made: China
• Manufacturer Limited Warranty: 1-Year All Parts
• Product Weight: 9 lbs.
• Product Dimensions: 11 x 8 x 12
• Approx. Installation Time: 2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
• Installation Difficulty: Difficult, Seek Professional Installation
• 50-State Emission Legal: No

This kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
