| Download Name | File Size |
| 199r10955.pdf | 173.95KB |
| 199r11914.pdf | 286.5KB |
| Make | Model | Submodel | Years | Engine |
| Chevrolet | Bel Air | Base | 1950 | 3.9L / 236 / L6 3.8L / 235 / L6 |
| Chevrolet | Bel Air | Base | 1951 | 3.9L / 236 / L6 3.8L / 235 / L6 |
| Chevrolet | Bel Air | Base | 1952 | 3.9L / 236 / L6 3.8L / 235 / L6 |
| Chevrolet | Bel Air | Base | 1953 | 3.5L / 216 / L6 3.9L / 236 / L6 3.8L / 235 / L6 |
| Chevrolet | Bel Air | Base | 1954 | 3.8L / 235 / L6 |
| Chevrolet | Sedan Delivery | Base | 1949 | 3.5L / 216 / L6 3.8L / 235 / L6 |
| Chevrolet | Sedan Delivery | Base | 1950 | 3.8L / 235 / L6 |
| Chevrolet | Sedan Delivery | Base | 1951 | 3.8L / 235 / L6 |
| Chevrolet | Sedan Delivery | Base | 1953 | 3.5L / 216 / L6 3.8L / 235 / L6 |
| Chevrolet | Sedan Delivery | Base | 1954 | 3.8L / 235 / L6 4.3L / 261 / L6 |
| Chevrolet | Two-Ten Series | Base | 1953 | 3.9L / 236 / L6 3.8L / 235 / L6 |
| Chevrolet | Two-Ten Series | Base | 1954 | 3.8L / 235 / L6 |
| Chevrolet | Two-Ten Series | Del Ray | 1954 | 3.8L / 235 / L6 |
| # of Passes | Single |
| Cooling Row Diameter | 11/16" |
| Core Dimension | 17-1/8" x 21-1/2" |
| Core Thickness | 2.76" |
| Emission Code | 5 |
| Flow Style | Down Flow |
| Hose Location Inlet | Center |
| Hose Location Outlet | Passenger |
| Inlet Diameter | 1-1/2 in. |
| Inlet Location | Center |
| Inlet Size | 1-1/2 in. |
| Mounting Type | Bracket Mount |
| Outlet Diameter | 1-3/4 in. |
| Outlet Location | Passenger |
| Outlet Size | 1-3/4 in. |
| Overall Dimension | 23-3/4" x 25-1/8" |

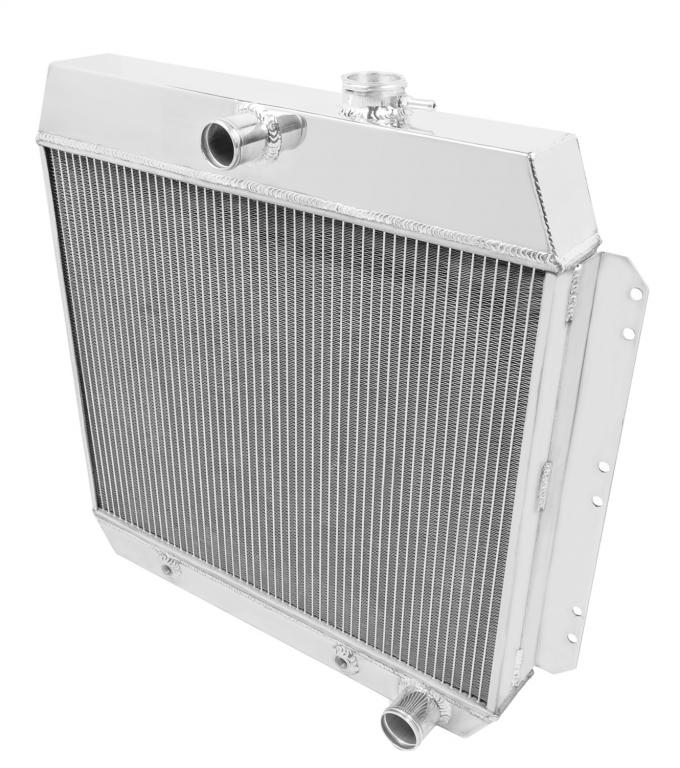

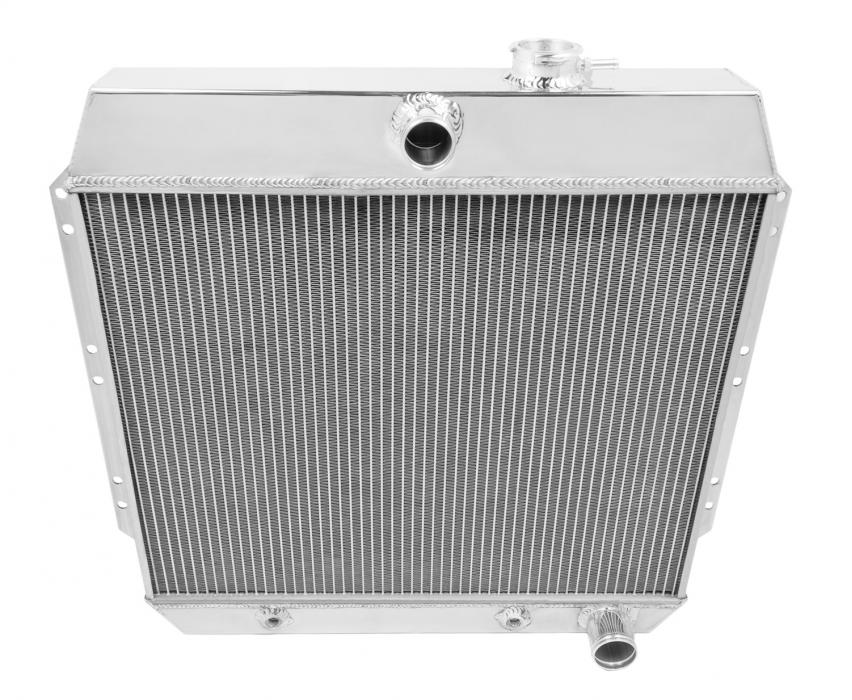

| Part Type | Radiator |
| Product Type | Radiator |
| Row Quantity | 4 |
| Rows | 4, 4 |
| Transcooler Provision | 1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included | 1/2-20 Straight Thread G 1/4 |
