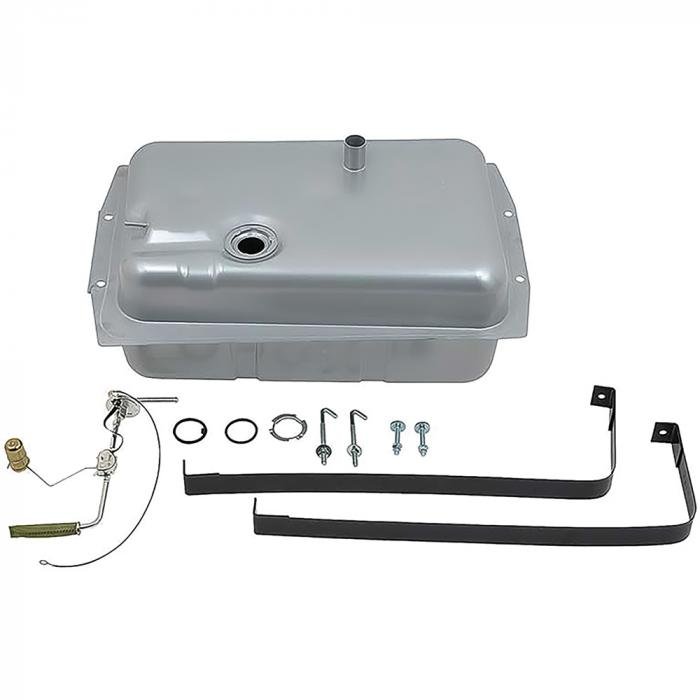

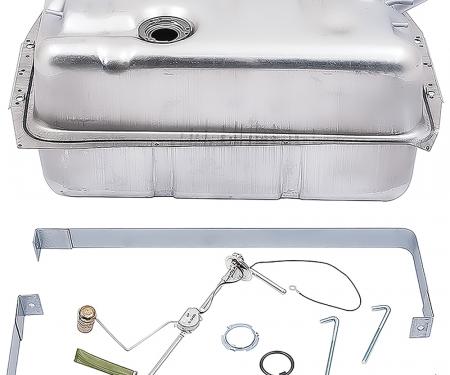

Relocate the fuel tank from inside the cab to underneath the truck on the frame rail to eliminate gas fumes inside the cab and add more interior storage space. Sets include: a new 17 gallon top fill fuel tank, fuel tank straps and the correct 0-90 ohm fuel sending unit with gasket and lock ring.
This tank's neck is located 3 inches from the left of the bed centerline and will place the filler neck in the center of the bedwood plank. Additional items will be needed to finish the installation, including: gas filler neck, fill hose and gas cap, fuel lines. Additionally, the sending unit wire will need to be extended and the spare tire mount brackets will need to be removed. This tank is designed for a custom fit and fabrication will be needed. Instructions are not available.
Use part# CX2140 for flush mount fuel filler kit.
Chevrolet Truck Applications
GMC Truck Applications
| Make | Model | Years |
| Chevrolet | Blazer | 1969 - 1972 |
| Chevrolet | C10 Panel | 1967 |
| Chevrolet | C10 Pickup | 1967 - 1972 |
| Chevrolet | C10 Suburban | 1967 - 1972 |
| Chevrolet | C20 Panel | 1967 |
| Chevrolet | C20 Pickup | 1967 - 1972 |
| Chevrolet | C20 Suburban | 1967 - 1972 |
| Chevrolet | C30 Pickup | 1967 - 1972 |
| Chevrolet | K10 Pickup | 1967 - 1972 |
| Chevrolet | K10 Suburban | 1967 - 1972 |
| Chevrolet | K20 Panel | 1967 |
| Chevrolet | K20 Pickup | 1967 - 1972 |
| Chevrolet | K20 Suburban | 1967 - 1972 |
| Chevrolet | K30 Pickup | 1968 - 1972 |
| Chevrolet | P10 Series | 1967 |
| Chevrolet | P20 Series | 1967 |
| Chevrolet | P30 Series | 1967 |
| GMC | C15/C1500 Pickup | 1967 - 1972 |
| GMC | C15/C1500 Suburban | 1967 - 1972 |
| GMC | C25/C2500 Pickup | 1967 - 1972 |
| GMC | C25/C2500 Suburban | 1967 - 1972 |
| GMC | C35/C3500 Pickup | 1967 - 1972 |
| GMC | Jimmy | 1970 - 1972 |
| GMC | K15/K1500 Pickup | 1967 - 1972 |
| GMC | K15/K1500 Suburban | 1967 - 1972 |
| GMC | K25/K2500 Pickup | 1967 - 1972 |
| GMC | K25/K2500 Suburban | 1967 - 1972 |
| GMC | K35/K3500 Pickup | 1968 - 1972 |
| GMC | L3500 | 1967 |
| GMC | LI3500 | 1967 |
