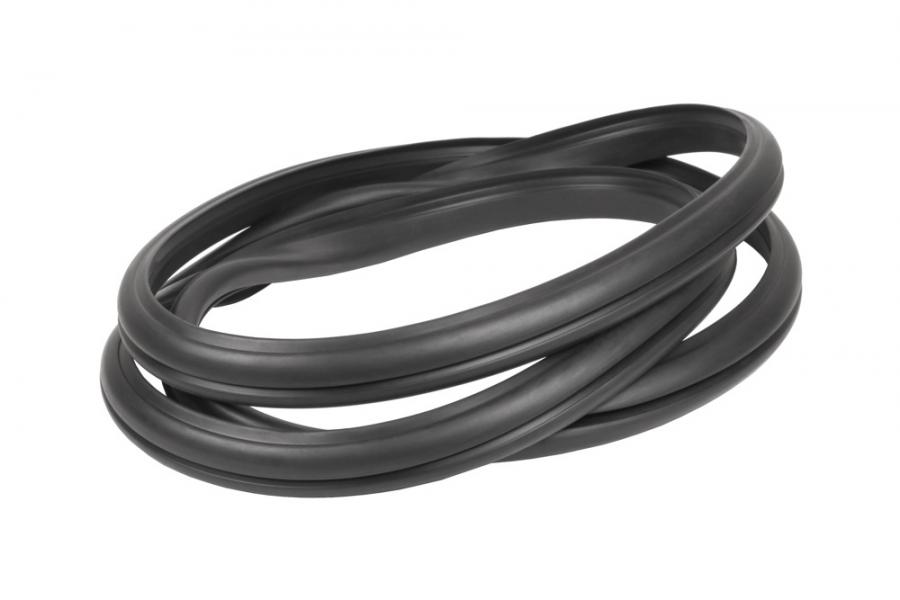

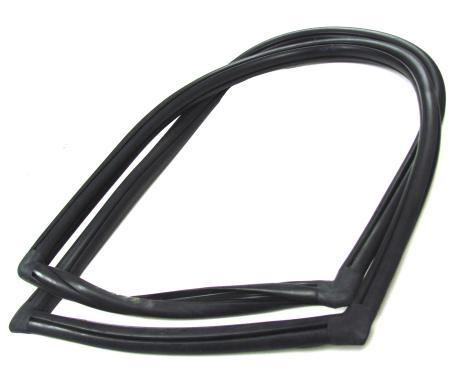

This rear quarter window weatherstrip seal (WBL D1107 SWT) is engineered to seal and secure quarter glass on single-wall convertible or vinyl tops that require a seal without a trim groove. Molded from high-quality EPDM rubber, it forms a tight weatherproof barrier that prevents water intrusion, reduces wind noise and vibration, and protects interior trim from damage. Designed as an OE-style replacement for restoration and maintenance projects, the seal delivers long-lasting flexibility, UV and ozone resistance, and an easy-fit profile for reliable performance.
Features:
- Designed for single-wall tops that require a rear quarter window seal without a trim groove (WBL D1107 SWT).
- Premium EPDM rubber construction resists UV, ozone, and temperature-related hardening or shrinking.
- Seals gaps to prevent water intrusion, wind noise, and vibration while protecting interior trim.
- OE-style replacement profile for restoration, repair, or routine maintenance of classic and custom tops.
- Push-in fit with flexible flange for straightforward installation and a secure, lasting seal.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
- Remove the old weatherstrip: carefully pry out the existing seal using a trim tool or flat-blade screwdriver. Cut out any stubborn sections with a razor knife.
- Clean the flange/channel: wipe the mounting surface with isopropyl alcohol to remove old adhesive, dirt, and grease. Allow to dry.
- Test-fit the new seal: dry-fit the replacement along the window opening to confirm orientation and length. Trim excess if required, leaving a small overlap for final fitting.
- Apply adhesive if needed: for a permanent bond or on older metal, apply a thin bead of weatherstrip adhesive to the channel per the adhesive manufacturer's instructions. Many installations will hold without adhesive; use as required.
- Install the seal: starting at one end, press the seal flange into the channel, working around the opening. Use a rubber mallet or push firmly by hand to seat the seal fully into place.
- Secure overlaps and finish: if there is overlap, trim and tuck so the joint is neat. Use masking tape to hold sections while adhesive cures (if used).
- Check fitment and cure time: install the glass (if removed) and verify a uniform seal. Allow adhesive to cure per product directions before exposing to water.
About Precision Replacement Parts
Since 1986 Precision Replacement Parts has been a trusted name in the Automotive Glass Industry.
Our knowledge and experience in manufacturing millions of extruded and molded EPDM Rubber, PVC and HDPE based plastics, and various stamped and extruded metal products for the classic and late model industries has allowed Precision to expand our services into multiple product markets.
Along with our own USA based production facility, Precision also partners with 25 different manufactures worldwide with a reputation as a global leader supplying OEM and replacement products to a number of different industries. Our partnerships along with our own in-house manufacturing and fabrication capability gives Precision a unique position in helping to meet the expanding needs of customers everywhere, providing them with a sustained competitive advantage.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Blazer |
1969 - 1972 |
| GMC |
Jimmy |
1970 - 1972 |
