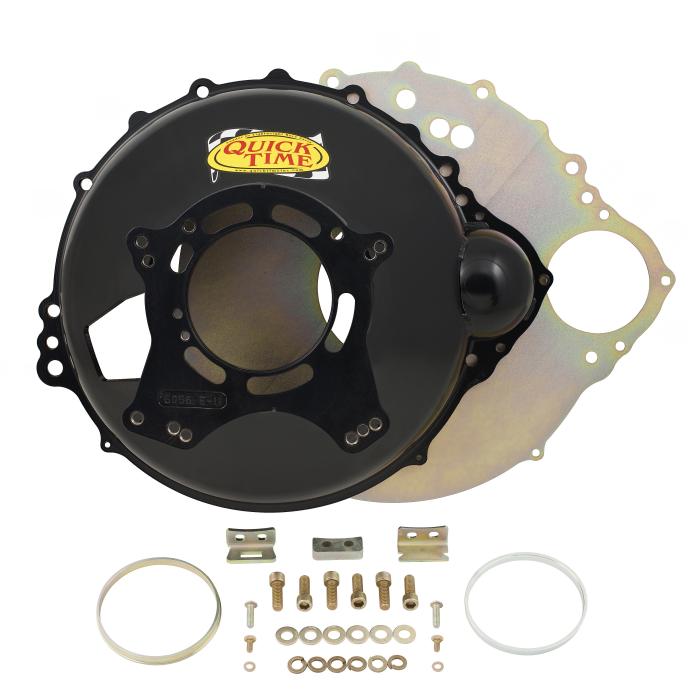

Quick Time Bellhousing, FE Big Block Ford RM-6056

Quick Time Bellhousing, FE Big Block Ford RM-6056
$1,896.99 ea
NEWARRIVING SOONEstimated Ship Date 08/27/2025 (If Ordered Today)52 Available from HOLLEY PERFORMANCE PRODUCTS as of 08/07/2025
Model: 4014897
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The Quick Time RM-6056 bellhousing connects Ford FE big block engines to Ford TKO500/600, T5 Mustang, or TR3550 transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification None
Clutch Diameter 12"
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford FE Block, Ford 352, Ford 390, Ford 427, Ford 428
Engine Make Ford
Engine Plate RM-6008
Finish Semi-Gloss
Flywheel 184 Tooth
Height 7.150 inch
Height (in) 7.15
Make Ford
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved No
Trans Bore 4.85 / 4.91 / 5.12
Trans. Bore Diameter 4.85 / 4.91 / 5.12 inch
Transmission TKO 500/600 Ford, TKX Ford, T5 Ford 1983-1993, TR3550
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
