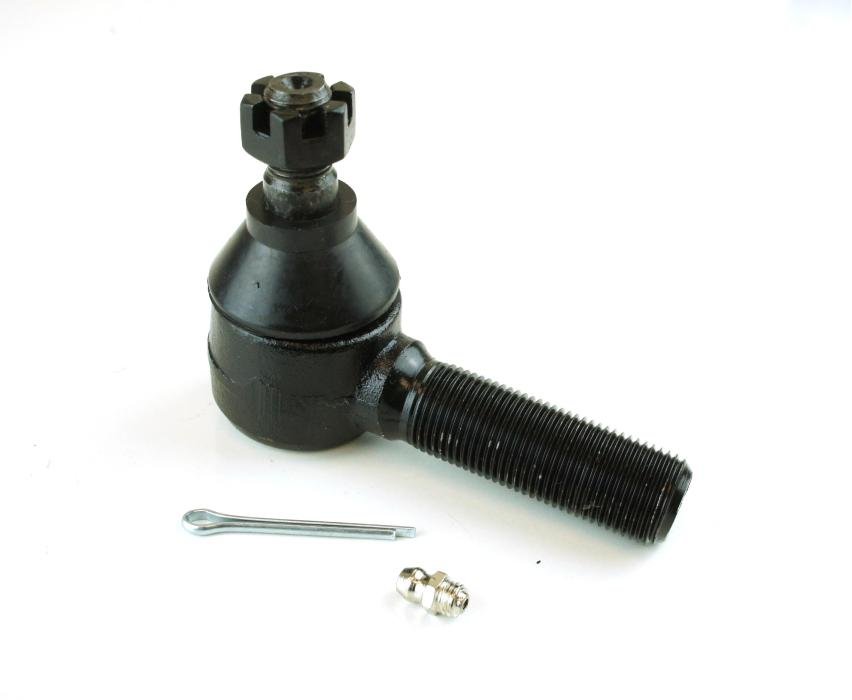

Outer tie rod end designed to restore steering precision and safety for 1986–1992 Dodge full‑size pickup trucks (D/W series). This right‑hand outer tie rod end secures the outer end of the tie rod to the steering knuckle, maintaining correct toe alignment, reducing play, and ensuring predictable steering response. Constructed for durability and dependable performance, it replaces worn or damaged OE components to eliminate looseness, uneven tire wear, and steering wander. Built with a hardened ball stud and protective dust boot, this part delivers long service life and straightforward installation for routine suspension and steering maintenance.
Features:
- Fits 1986–1992 Dodge full‑size pickup trucks (D/W series) — outer tie rod end, right hand
- Hardened steel ball stud and housing for reliable steering control
- Protective rubber dust boot seals the joint to keep out dirt and moisture
- Restores proper toe alignment to reduce uneven tire wear and steering play
- Direct replacement for worn or damaged OE outer tie rod ends — ideal for restoration or routine maintenance
- Straightforward installation with common hand tools; designed for long‑term durability
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes per side
Instructions:
- Park vehicle on level ground, engage parking brake, and loosen the front wheel lug nuts slightly.
- Raise the front of the vehicle with a floor jack and support securely on jack stands. Remove the front wheel.
- Locate the outer tie rod end at the steering knuckle. Apply penetrating oil to the castle nut and threads if corroded.
- Mark the position of the tie rod end on the inner tie rod or count the exposed threads to preserve approximate alignment for reassembly.
- Remove the cotter pin (if present) and loosen and remove the tie rod end castle nut or nut securing the stud to the steering knuckle.
- Use a tie rod end puller or pickle fork to separate the tie rod end stud from the steering knuckle. A sharp tap with a hammer may be needed to free the stud.
- Loosen the jam nut on the inner tie rod and unthread the outer tie rod end, using your reference marks or thread count to maintain toe setting.
- Thread the new outer tie rod end onto the inner tie rod to the previously noted position. Tighten the jam nut against the new tie rod end per vehicle specifications.
- Insert the new stud into the steering knuckle, install and torque the nut to factory specification, and secure with a new cotter pin if required.
- Reinstall the wheel, lower the vehicle, torque the lug nuts to specification, and road test. Have a professional wheel alignment performed to ensure exact toe settings and optimal tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Dodge |
Ramcharger |
1986 - 1991 |
| Dodge |
W100 |
1986 - 1989 |
| Dodge |
W150 |
1986 - 1991 |
| Dodge |
W250 |
1986 - 1992 |
