Redline Select® 1999-2019 Cadillac / Chevrolet / GMC / Hummer Pitman Arm (3 Groove)

Redline Select® 1999-2019 Cadillac / Chevrolet / GMC / Hummer Pitman Arm (3 Groove)
$102.99 ea
NEWIN STOCK11 Units in Stock7 Day Fulfillment Lead Time
Model: 5015337
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

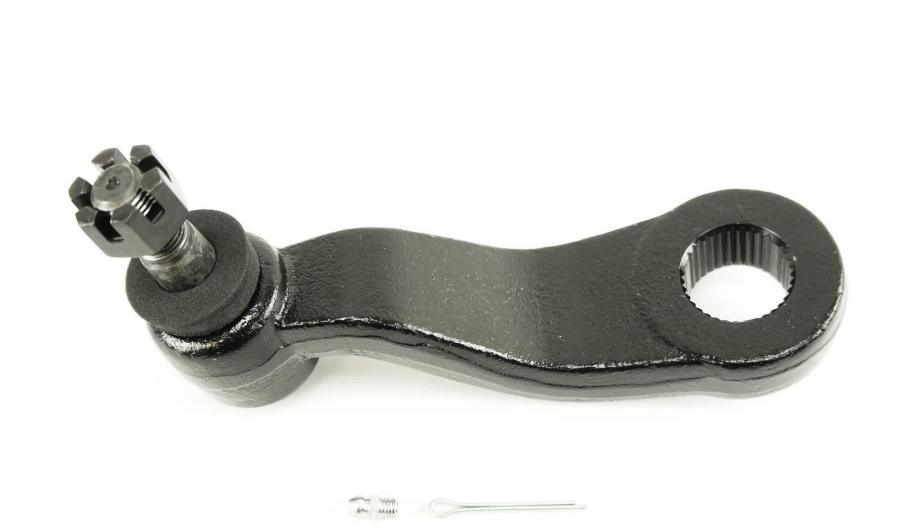

Direct-fit 3-groove pitman arm designed for 1999–2019 Cadillac, Chevrolet, GMC and Hummer trucks and SUVs. This heavy-duty steering arm transfers motion from the steering box to the center link, maintaining correct steering geometry and eliminating play. Forged and heat-treated for long life, the part resists wear, restores steering precision, and is a straight bolt-on replacement for worn or damaged pitman arms. Ideal for routine steering system maintenance, restoration projects, or performance upgrades where reliable steering response is required.
Features:
  • Fitment: Direct-fit for 1999–2019 Cadillac, Chevrolet, GMC and Hummer models using a 3-groove pitman arm configuration.
  • Forged, heat-treated steel construction for high strength and long-lasting durability.
  • 3-groove design ensures secure engagement with the steering box's output shaft.
  • Restores steering precision by removing play and improving alignment stability.
  • Bolt-on replacement for easy installation during maintenance or restoration.
  • Protective finish helps resist corrosion and extends service life under road conditions.
Installation / Application:
  • Difficulty: 3/5
  • Estimated time: 45-90 minutes
Suggested Tools:
  • Socket and ratchet set
  • Breaker bar
  • Pitman arm puller
  • Torque wrench
  • Hammer (optional)
  • Penetrating oil
  • Safety glasses and gloves
  • Wheel chocks
Instructions:
  1. Park vehicle on level ground, set parking brake, and chock wheels. Disconnect battery if preferred for safety.
  2. Raise the front of the vehicle and support on jack stands to access the steering components.
  3. Remove the nut securing the pitman arm to the steering box output shaft. Apply penetrating oil and use a breaker bar if needed.
  4. Separate the pitman arm from the center link or drag link using a tie rod separator or appropriate puller tool.
  5. Use a pitman arm puller to remove the old pitman arm from the steering box output shaft. Avoid hammering directly on steering components.
  6. Inspect the steering box splines and center link components for wear or damage; replace other worn components as needed.
  7. Align the new pitman arm splines with the steering box output shaft and press or slide it into position. A light tap with a hammer on a protective block may help seat it.
  8. Install and torque the retaining nut to the manufacturer's specification using a torque wrench.
  9. Reconnect the center link or drag link and torque fasteners to spec. Verify steering wheel alignment and check for proper steering travel.
  10. Lower the vehicle, perform a road test, and have a professional alignment performed if necessary.
About Redline Select

Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.

Redline Select®  is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles.  We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect.  Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Cadillac Escalade 2002 - 2006
Chevrolet Avalanche 1500 2005 - 2006
Chevrolet Avalanche 2500 2002 - 2006
Chevrolet Express 2500 2003 - 2019
Chevrolet Express 3500 2003 - 2019
Chevrolet Express 4500 2009 - 2017
Chevrolet Silverado 1500 Classic 2007
Chevrolet Silverado 1500 HD Classic 2007
Chevrolet Silverado 1500 HD 2001 - 2006
Chevrolet Silverado 1500 2001 - 2006
Chevrolet Silverado 2500 HD Classic 2007
Chevrolet Silverado 2500 HD 2001 - 2010
Chevrolet Silverado 2500 1999 - 2004
Chevrolet Silverado 3500 Classic 2007
Chevrolet Silverado 3500 HD 2007 - 2010
Chevrolet Silverado 3500 2001 - 2006
Chevrolet Suburban 2500 2000 - 2013
GMC Savana 2500 2003 - 2019
GMC Savana 3500 2003 - 2019
GMC Savana 4500 2009 - 2019
GMC Sierra 1500 Classic 2007
GMC Sierra 1500 HD Classic 2007
GMC Sierra 1500 HD 2001 - 2006
GMC Sierra 1500 1999 - 2006
GMC Sierra 2500 HD 2001 - 2010
GMC Sierra 2500 1999 - 2004
GMC Sierra 3500 Classic 2007
GMC Sierra 3500 HD 2007 - 2010
GMC Sierra 3500 2001 - 2006
GMC Yukon XL 2500 2001 - 2013
Hummer H2 2003 - 2009

Specifications:

Aftermarket Reference K6654, FA6049, MK6654, PA6654, 621.66509, 4451075
Boot Material Foam
Center to Center Length (mm) 136
End Type 1 Spline
End Type 2 Stud
Grease Port Yes
Housing Finish E-Coat or Mag Phos
Includes Grease Fitting/s Yes
Includes Hardware Yes
OE Reference 19168473, 12479051
Other Hardware Castle Nut, Pin
Proposition 65 WARNING: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
Spline Teeth 27T
Stud Taper Bottom (mm) 17.65
Stud Taper Height (mm) 20
Stud Taper Top (mm) 15.15
Stud Thread M14x1.5
