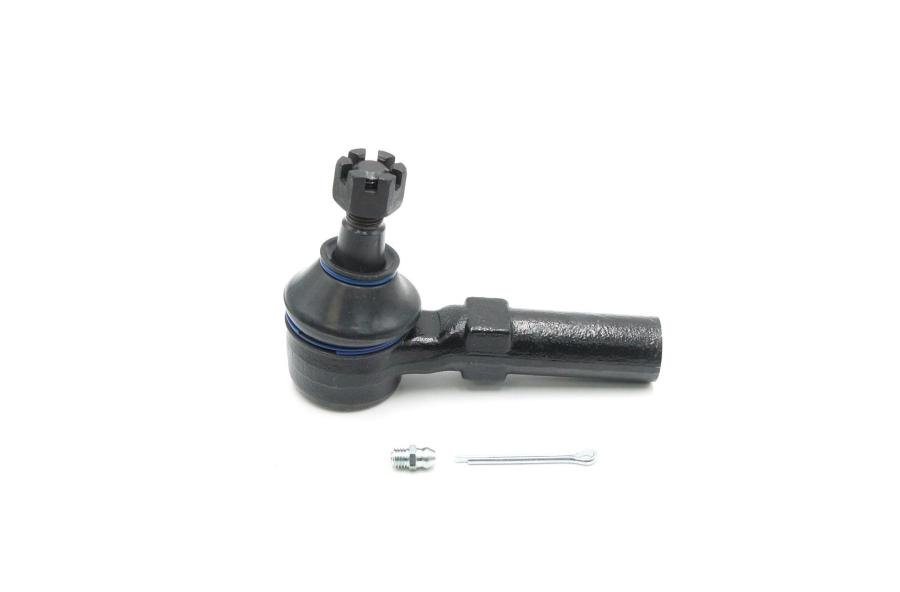

Outer tie rod end for 2001–2009 Ford, Mazda, and Mercury vehicles (right or left hand) with a 16mm thread at the housing end — fitment through 06/04/2009. This replacement tie rod end secures the steering linkage to the steering knuckle, maintaining alignment and precise steering control. Built for durability and reliable performance, it restores proper steering feel, reduces play and vibration, and helps prevent uneven tire wear. Designed as a direct-fit replacement for worn or damaged outer tie rod ends, it simplifies suspension maintenance and restoration.
Features:
- Fitment: 2001–2009 Ford, Mazda, and Mercury models — outer tie rod end, right or left hand (16mm thread at housing end to 06/04/2009).
- Direct-fit replacement for worn or damaged outer tie rod ends to restore steering accuracy.
- 16mm threaded housing end compatible with specified steering linkages.
- Constructed for durability to resist wear from road and steering loads.
- Reduces steering play and vibration, helping prevent uneven tire wear.
- Easy-to-install design suitable for routine suspension maintenance and restoration projects.
Installation / Application:
- Difficulty: 3/5
- Estimated time: 45-90 minutes per side
Instructions:
- Park on level ground, set parking brake and chock rear wheels.
- Loosen the front wheel lug nuts slightly, then raise the vehicle with a jack and support it securely on jack stands. Remove the wheel.
- Locate the outer tie rod end connecting the steering knuckle to the inner tie rod. Mark the position of the old tie rod end on the tie rod shaft with a marker or count the turns to preserve alignment.
- Loosen the jam nut at the inner tie rod connection (if applicable) but do not remove it.
- Remove the castle nut or retaining nut at the tie rod end-to-knuckle connection. Use a tie rod end puller or a pickle fork to separate the tie rod end from the steering knuckle. A light hammer tap may help release it.
- Unthread the outer tie rod end from the tie rod shaft, counting turns or matching the mark you made to maintain approximate toe alignment.
- Thread the replacement outer tie rod end onto the tie rod shaft to the marked position or the same number of turns as removed. Tighten the jam nut against the new tie rod end if present.
- Insert the tie rod stud into the steering knuckle and secure with the supplied nut. Torque to the vehicle manufacturer's specification and install a new cotter pin if required.
- Reinstall the wheel, lower the vehicle, and torque the wheel lug nuts to specification.
- Because toe alignment can be affected, have a professional wheel alignment performed after installation to ensure proper steering and tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Ford |
Escape |
2001 - 2009 |
| Mazda |
Tribute |
2001 - 2009 |
| Mercury |
Mariner |
2005 - 2009 |
