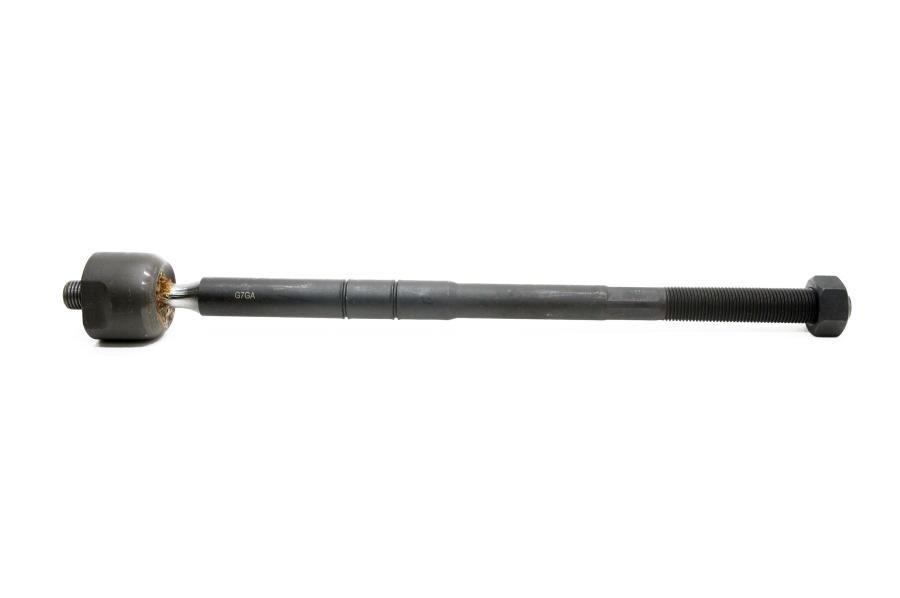

Inner tie rod end for 2008–2009 Ford, Mazda, and Mercury applications (right or left hand) designed to connect the steering rack to the outer tie rod and maintain precise wheel alignment. Built to secure steering linkage, this replacement part features a 16mm threaded outer end and fits vehicles produced through 6/4/09. It restores steering feel and alignment, reduces play and vibration, and helps prevent premature tire wear. Durable construction and straightforward installation make it suitable for routine maintenance and restoration of worn or damaged steering components.
Features:
- Fits 2008–2009 Ford, Mazda, and Mercury models (inner tie rod end, right or left hand; vehicles built to 6/4/09).
- 16mm threaded outer end to match factory outer tie rods.
- Replaces worn inner tie rod to restore steering precision and reduce wheel play.
- Durable materials and corrosion-resistant finish for long service life.
- Direct-fit replacement for steering system maintenance and restoration.
- Designed for straightforward installation with basic hand tools.
Installation / Application:
- Difficulty: 3/5
- Estimated time: 45-90 minutes per side
Instructions:
- Park vehicle on level ground, engage parking brake and block rear wheels.
- Loosen front wheel lug nuts slightly with lug wrench.
- Raise front of vehicle with jack and secure on jack stands. Remove the wheel.
- Locate the inner tie rod and identify the correct side (right or left).
- Loosen the jam nut on the outer tie rod and mark or count turns to preserve alignment, or measure toe settings.
- Separate the outer tie rod from the steering knuckle using a tie rod separator or pickle fork; remove outer tie rod from the steering knuckle.
- Loosen and remove the outer tie rod from the inner tie rod by unscrewing; set aside if reusing.
- Remove any retaining hardware or clamps securing the inner tie rod to the steering rack and unscrew the inner tie rod from the rack.
- Compare the new inner tie rod to the removed unit to confirm correct 16mm thread orientation and length.
- Screw the new inner tie rod into the steering rack to the factory or measured position and tighten the retaining nut/clip per vehicle specs.
- Reinstall the outer tie rod onto the new inner tie rod using the previously counted turns or alignment measurement, then reconnect to the steering knuckle and secure with the appropriate nut. Torque all fasteners to manufacturer specifications.
- Tighten the jam nut against the inner tie rod and ensure no binding in the steering assembly. Apply grease if required.
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to spec.
- Have a professional wheel alignment performed after installation to ensure proper toe settings and tire wear prevention.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Ford |
Escape |
2008 - 2009 |
| Mazda |
Tribute |
2008 - 2009 |
| Mercury |
Mariner |
2008 - 2009 |
