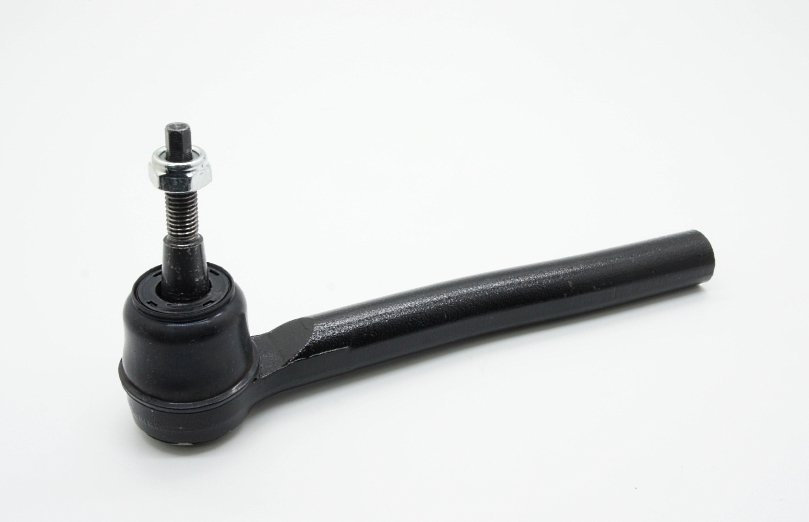

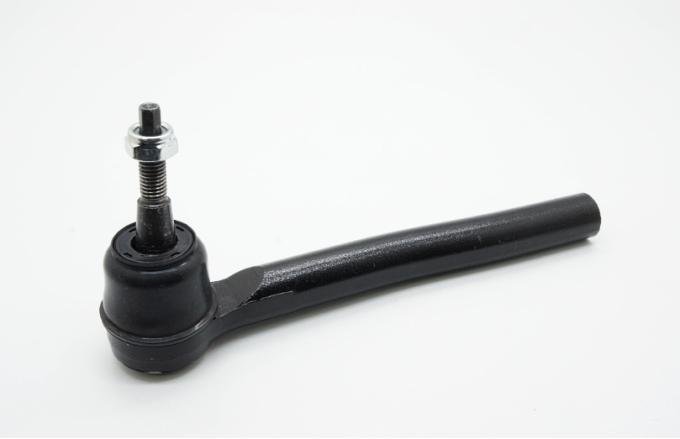

This outer right-hand tie rod end is a direct-fit replacement designed for 2019-2022 Ford Ranger models. It secures the steering linkage to the steering knuckle, transferring steering input from the rack to the wheels while maintaining alignment and safe vehicle control. Constructed for long-lasting performance, the part resists wear and reduces play in the steering system, restoring precise steering feel and improving handling. Easy to install and engineered to meet or exceed OE fitment and durability expectations, it’s ideal for maintenance, repair, or restoration projects to return the vehicle to factory steering performance.
Features:
- Fitment: Direct-fit outer right-hand tie rod end for 2019-2022 Ford Ranger.
- High-strength construction for long-term durability and resistance to wear.
- Restores steering precision by reducing play and maintaining proper alignment.
- Sealed ball joint design helps keep contaminants out and extends service life.
- Direct replacement for restoring factory steering performance during repairs.
- Simple, fast installation for routine maintenance or suspension repairs.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 45-90 minutes
Instructions:
- Park on a level surface, engage parking brake, and place wheel chocks behind the rear wheels.
- Loosen the front wheel lug nuts slightly, raise the vehicle with a jack, and support it securely on jack stands.
- Remove the front wheel to access the tie rod assembly.
- Locate the outer tie rod end on the steering knuckle and mark the position of the old tie rod on the inner tie rod or count the number of exposed threads to preserve alignment.
- Loosen the jam nut on the inner tie rod and then loosen the nut securing the outer tie rod end to the steering knuckle, but do not fully remove yet.
- Use a tie rod end puller or a pickle fork to separate the tie rod end from the steering knuckle; remove the securing nut and take off the old tie rod end.
- Unscrew the old outer tie rod end from the inner tie rod, noting the thread engagement to match the new part for alignment.
- Screw the new outer right-hand tie rod end onto the inner tie rod to the pre-marked position or the same number of threads as removed, then tighten the jam nut to the specified torque.
- Insert the tie rod stud into the steering knuckle, install the castle nut or retaining nut, and torque to the vehicle manufacturer’s specification. If equipped with a cotter pin, insert and bend it to secure.
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to specification.
- Check steering wheel position and verify approximate alignment. It is strongly recommended to perform a professional wheel alignment after installation to ensure proper toe settings and prevent premature tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Ford |
Ranger |
2019 - 2022 |
