TCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 Trucks

TCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 Trucks
TCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 TrucksTCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 TrucksTCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 TrucksTCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 TrucksTCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 TrucksTCI Complete Chassis, Coilover IFS And Four-Link Rear Suspension, Plain Package, 1953-1956 Trucks
$35,491.99 ea
NEWARRIVING SOONEstimated Ship Date 05/06/2024 (If Ordered Today)
Model: 3156052
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
TRUCK
FREIGHT

  • Small Block Engine Mounts Pre-Mounted
  • Automatic Transmission Mounts Pre-Mounted
  • Tubular A-Arms
  • 2" Drop Spindles
  • RideTech Adjustable Coilovers
  • 1" Rear 4-Bars Supplied
  • Power Steering Rack
  • Front & Rear Sway Bar Kits
  • Panard Bar Assembly
  • 11" Smooth/Vented Brake Rotors
  • Big-Bore Brake Calipers
  • Power Brake Pedal Assembly
  • Stainless Steel Hardlines Pre-Plumbed
  • Stainless Steel Flexlines Pre-Plumbed
  • 9" Rear End Housing With Nodular Iron Case
  • 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30 Or 4.56 Gear Ratio
  • 31-Spline Axles
  • 11" Drum Brakes
  • Center Section & All Crossmembers Installed
  • Frame Retains The Factory Profile For Easier Of Mounting The Body
  • Heli-Arc Welded For The Highest Quality
  • Limited Lifetime Manufacturer Warranty
  • Proudly Made In The U.S.A.

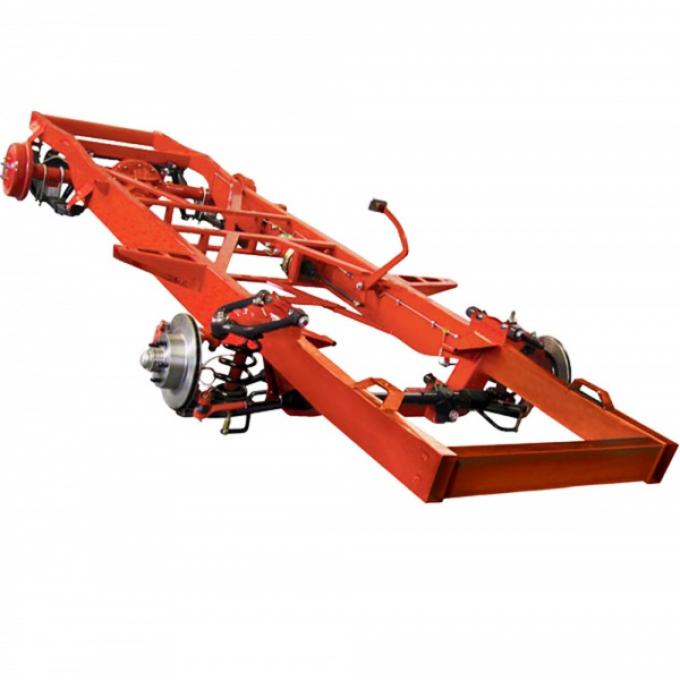

To build the best, start with the best! This 1953-1956 Ford pick up complete chassis has been engineered for strength, safety, performance, drive-ability, and ride-ability. The frame features main rails with an extended height from 6" to 8" for increased rigidity and clearance between upper and lower x-members while still retaining the original factory profile. The heavy duty, 16 piece, 2" x .75" .120w center section allows plenty of room for even the most extreme exhaust sizes. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety.

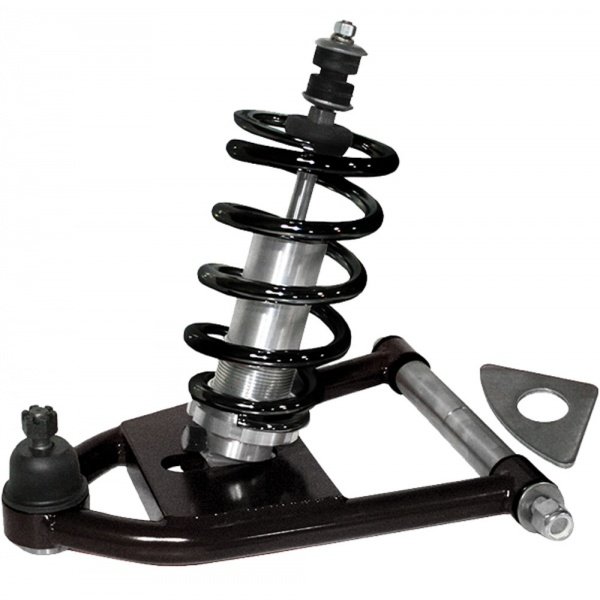

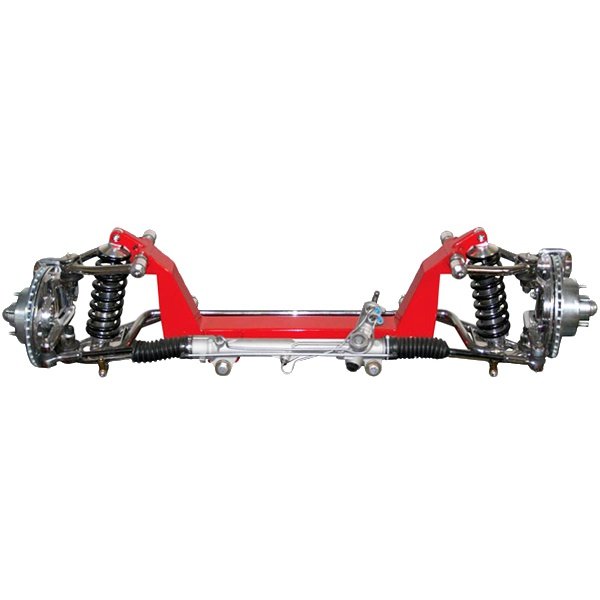

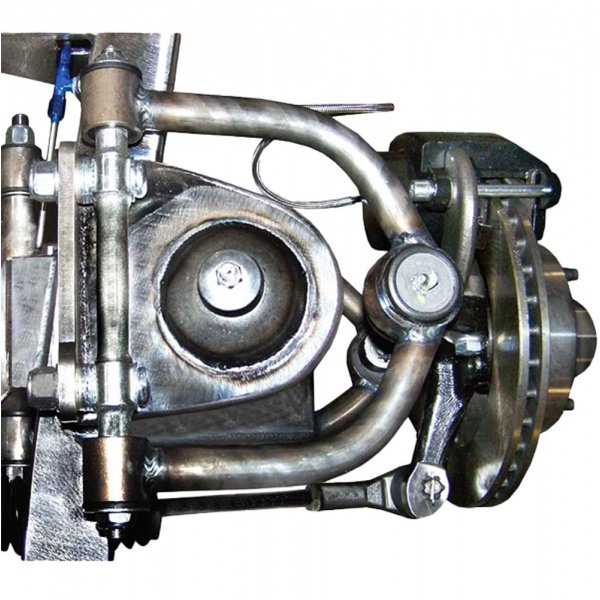

TCI's custom independent front suspension system is a no-nonsense, no-compromise performance set-up based on their own custom spindle design. The geometry is specifically engineered to maximize cornering grip, yet provide great street manners for everyday cruising. Ride height can be easily modified with the billet aluminum rebound-adjustable RideTech coilovers.

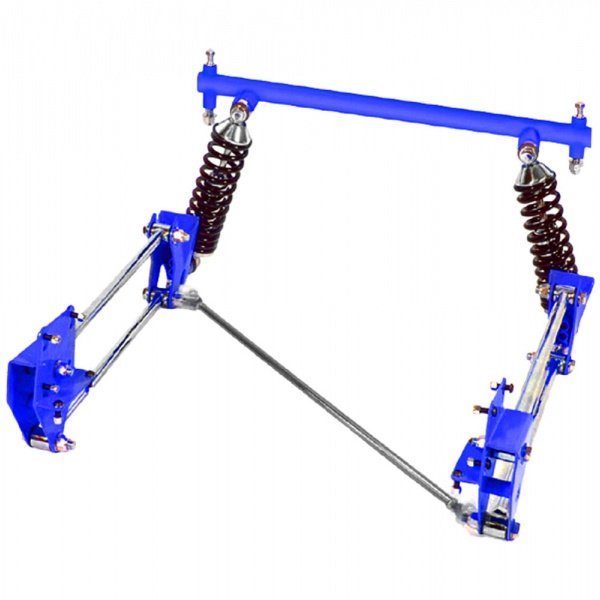

The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and all parts are proudly made in the USA. Talk about a solid foundation to build off of!

NOTE: "Show Package" displayed (powder coating is not included).

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Ford F-100 1953 - 1956
Ford F-250 1953 - 1956
Ford F-350 1953 - 1956
