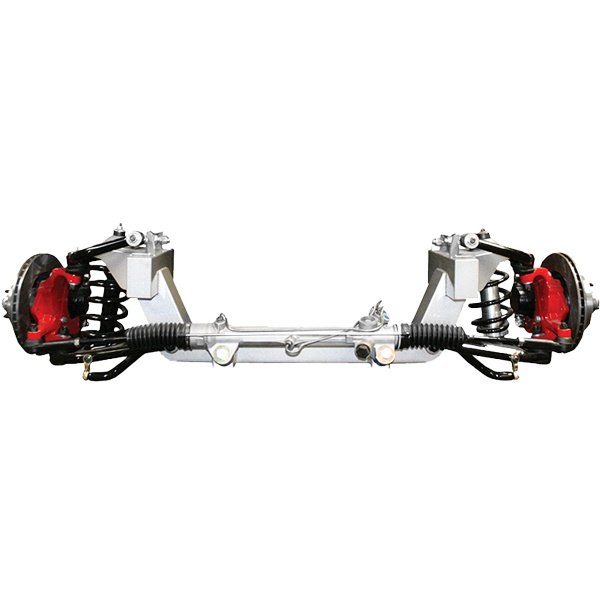

TCI Front Coilover Suspension Kit, Mustang II, 4.50 Bolt Pattern, 1948-1952 Trucks

TCI Front Coilover Suspension Kit, Mustang II, 4.50 Bolt Pattern, 1948-1952 Trucks
TCI Front Coilover Suspension Kit, Mustang II, 4.50 Bolt Pattern, 1948-1952 TrucksTCI Front Coilover Suspension Kit, Mustang II, 4.50 Bolt Pattern, 1948-1952 TrucksTCI Front Coilover Suspension Kit, Mustang II, 4.50 Bolt Pattern, 1948-1952 Trucks
$8,519.99 ea
NEWARRIVING SOONEstimated Ship Date 06/27/2024 (If Ordered Today)
Model: 3155794
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
TRUCK
FREIGHT

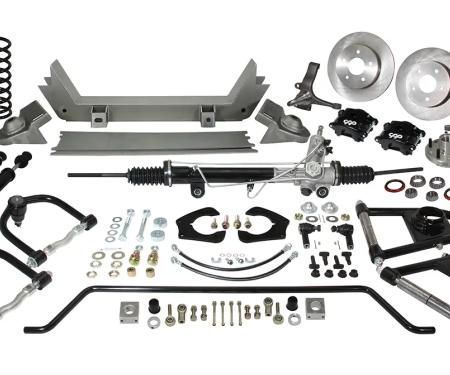

  • Reinforced 3/16" Steel Crossmember With Box Plates
  • One Piece Lower Control Arm Pin Design
  • Redesigned Upper Spring Towers
  • 1" Performance Anti-Roll Bar Kit
  • Power Steering Rack
  • Tubular A-Arms
  • Energy Suspension Greaseable Polyurethane Bushings
  • Stock Height Or 2" Drop Spindles
  • Coil Springs & Shocks
  • Big-Bore Front Brake Calipers
  • 11" Smooth Vented Front Brake Rotors w/Bearings (Pregreased)
  • Moog K772 Upper Ball Joints
  • Moog K719 Lower Ball Joints
  • 1" x .156w U.S. DOM Steel Upper Tubular A-arms
  • 1 1/8" x .156w U.S. DOM Lower Tubular A-Arms
  • Mounting Hardware Included
  • Detailed Instruction Manual
  • Limited Lifetime Manufacturer Warranty
  • Proudly Made In The U.S.A.
  • FREE SHIPPING Within The Continental USA

If you want the ultimate front suspension for your truck without breaking the bank, then look no further than TCI's versatile coil-spring IFS kit. This American made product is engineered for easier installation, enhanced drivability and a broader range of alignment adjustments. TCI has re-engineered the upper coil-spring tower to accommodate a traditional shim style alignment adjustment instead of using t-bolts. This new design now also uses a vertical plate to mount the upper control arm to. During this redesign, TCI was also able to increase camber gain and anti-dive for better performance.

The main channel is made from 3/16" thick ASTM A-1011 Steel plate and is completely welded in-house for quality control. The new lower control arm mounting pin is a one-piece design instead of a two-piece design for added strength and durability without increasing weight. TCI also uses heavy duty ball joints and control arms for extra strength and reliability. It comes with a limited lifetime warranty and all parts proudly made in the USA!

NOTE: "Show Package" displayed (powder coating is not included).

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Ford F-1 1948 - 1952
Ford F-2 1948 - 1952
Ford F-3 1948 - 1952
