Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199

Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199
Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199Ridetech Bolt-On 4 Link System for 1973-1987 Chevy C10 11367199
$4,299.99 kt
NEWARRIVING SOONEstimated Ship Date 04/10/2024 (If Ordered Today)4 Available from RIDETECH as of 03/28/2024
Model: 3429499
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SHIPPING
INCLUDED

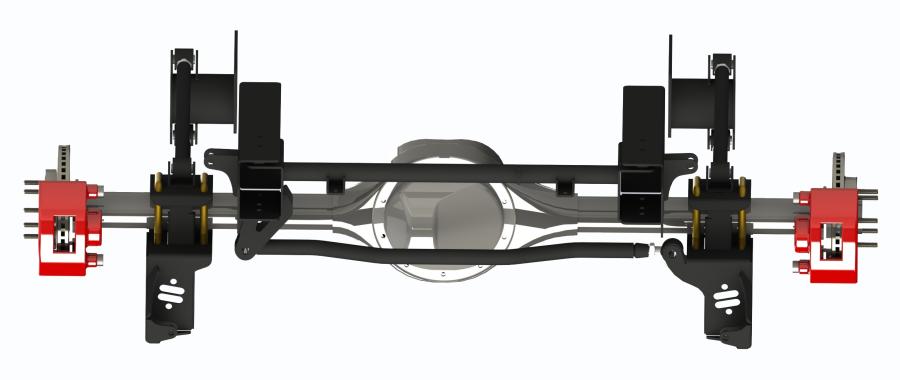

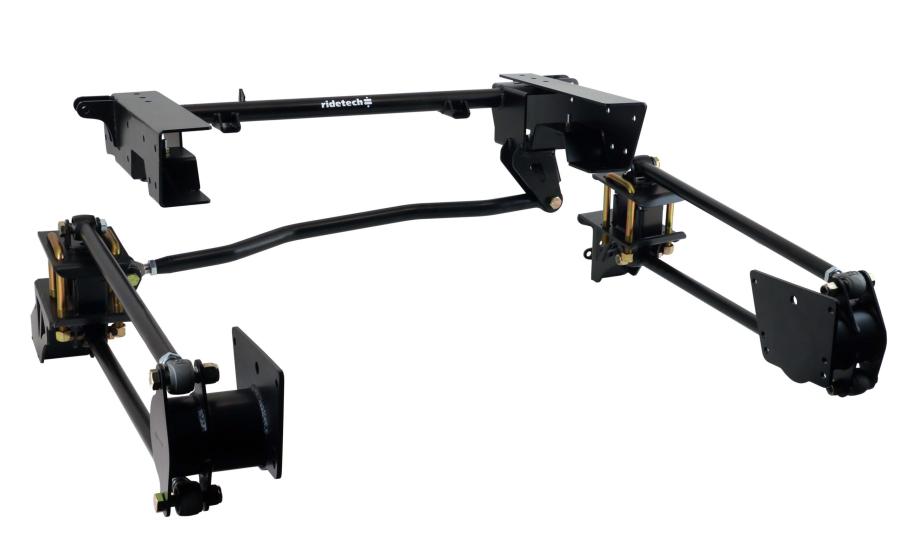

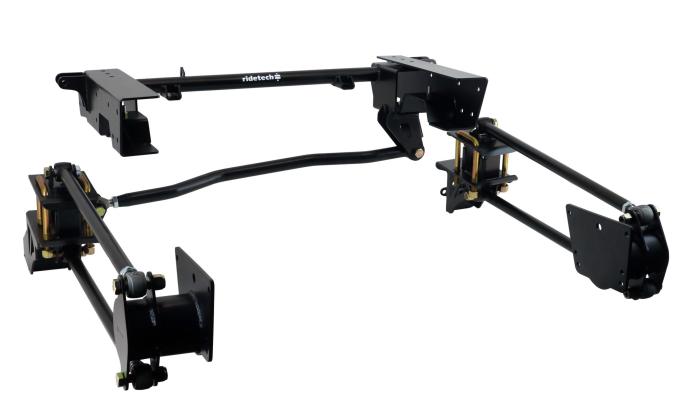

The Bolt-On Rear 4 Link System replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for Shockwaves or CoilOvers. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been located to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to mimize body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The C-notches are included with the kit and FIT the frame rail.

WARNING: Cancer and Reproductive Harm

About Ridetech

Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.

Downloads:

Download Name File Size
11367199_rjoints_rev2.pdf940.31KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet C10 1983 - 1986
Chevrolet R10 1987
GMC C1500 1983 - 1986
GMC R1500 1987
