XDR 2016-2018 Polaris RZR S 1000 EPS Off-Road Competition Exhaust 7520

XDR 2016-2018 Polaris RZR S 1000 EPS Off-Road Competition Exhaust 7520
XDR 2016-2018 Polaris RZR S 1000 EPS Off-Road Competition Exhaust 7520XDR 2016-2018 Polaris RZR S 1000 EPS Off-Road Competition Exhaust 7520XDR 2016-2018 Polaris RZR S 1000 EPS Off-Road Competition Exhaust 7520
$1,240.99 ea
NEWARRIVING SOONEstimated Ship Date 05/17/2024 (If Ordered Today)32 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/26/2024
Model: 4016677
OVERSIZE 2

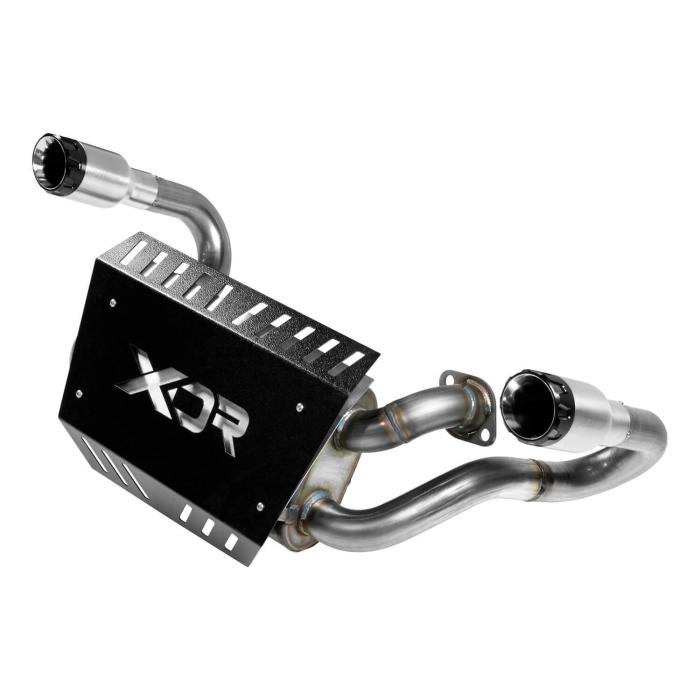

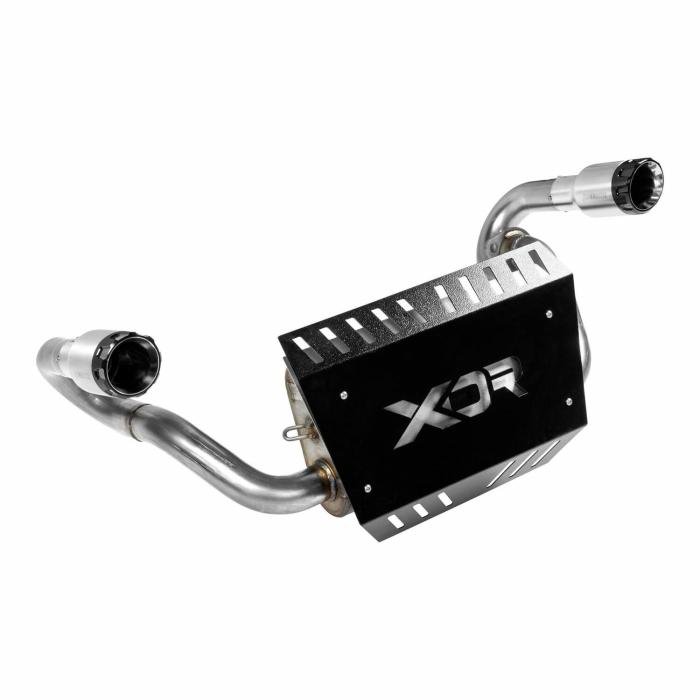

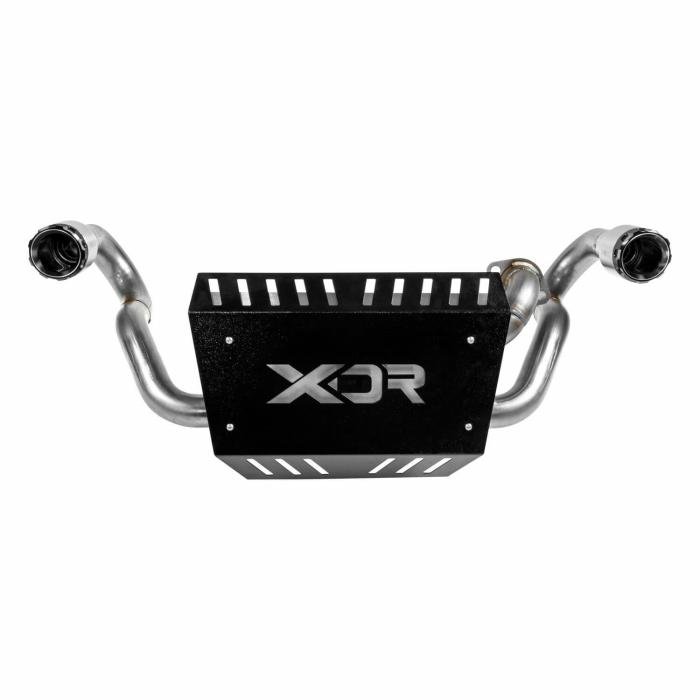

This new bolt-on XDR Competition exhaust system is for the 2016-2018 Polaris RZR S 1000 engine. Does not include the Turbo S models. The system connects at the factory flanged connection and is firmly held in place using the factory rubber mounts and springs. Features include 409S stainless steel construction, a 2.50-inch mandrel-bent inlet tube flowing into the XDR "straight-through" cross-flow Competition muffler providing a deep moderate to aggressive sound level. The dual 2.25-inch mandrel-bent tailpipes are tucked up high within the rear fenders and are finished off with a pair of 3.50-inch brushed 304s stainless steel tips with black anodized aluminum end caps. The system comes with a custom black powder coated heat shield sporting a laser-cut XDR logo in the shield showing everyone behind you why you're RZR sounds so good. Includes all necessary hardware and detailed instructions for a simple at home installation. Note: This system does not include a catalytic converter and therefore is not emissions compliant for on-road or trail use. For Competition use only.
Features:
  • High Performance XDR Competition Muffler
  • High Clearance Dual Exhaust Tailpipes
  • Full Stainless Steel Construction
  • Quick and Easy Installation
  • Large Mandrel-bent Tubing
  • Lifetime Limited Warranty
  • US Forestry Service Approved Spark Arrestor Included
2016-2018 Polaris RZR S 1000cc engine. Does not include the Turbo S models.
Installation Notes:
2016-2018 Polaris RZR S 1000cc engine. Does not include the Turbo S models.

Downloads:

Download Name File Size
fm_warranty_general.pdf88.58KB
7520_instructions.pdf2.4MB

Specifications:

Assembly Required No
Bolt Hole Diameter (in) 0.625
California Proposition 65 Chemical Name Chromium (hexavalent compounds), Nickel (Metallic)
California Proposition 65 Required Yes
CARB (California) Compliant No
Compatible Brands/Models Polaris RZR

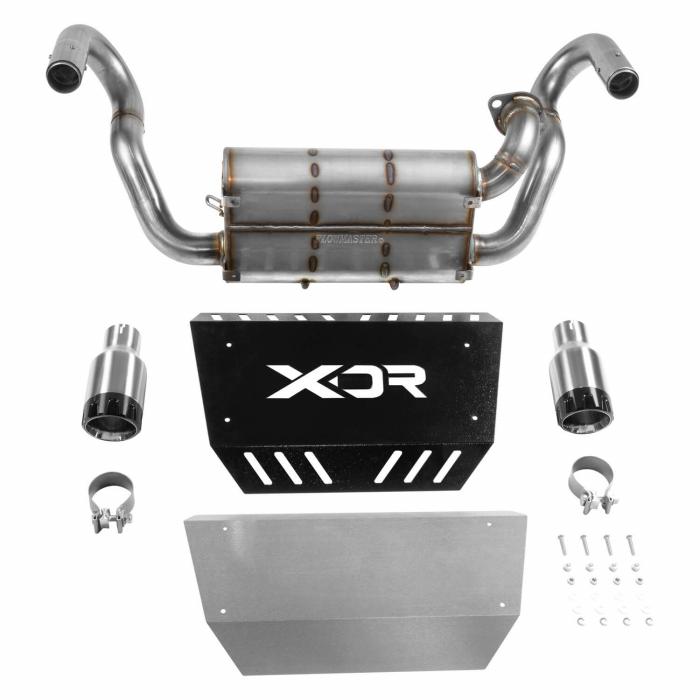

Components Included Muffler, Tips, Heatshields, Hardware and Instructions
Decibal Rating (dB) Not Available
Emission Code 4
Exit Location DOR
Flange Length (in) 4.875
Flange Quantity 1
Flange Thickness (in) 0.25
Flange Width (in) 3.45
Header Pipe Quantity Not Included
Included Safety Features Heat Shield
Mounting Hardware Yes
Mounting Hardware Included Yes
Mounting Hole Spacing (in) 3.625
Mounting Method Bolt On
Muffler Body Height (in) 9.75
Muffler Body Length (in) 17
Muffler Body Material 409 Stainless
Muffler Body Width (in) 4
Muffler Color/Finish Natural
Muffler Configuration Single
Muffler Inlet Count 1
Muffler Inlet Inside Diameter(in) 2.39
Muffler Internal Description Absorption
Muffler Outlet 2
Muffler Outlet Inside Diameter (in) 2.14
Muffler Quantity 1
Muffler Style Transverse
Mufflers Included Yes
Number of Bolt Holes per Flange 2
Overall Exhaust System Diameter (in) 2.25
Part Type Exhaust System Kit
Pipe Material/Type 409 Stainless
Power Sport Item Type Rear Section Exhaust
Product Type Exhaust Systems / Kits
Proposition 65 www.P65Warnings.ca.gov
Special Fitment Info Competition use only. Not emissions compliant
System Color/Finish Natural
Tip Cut Angle
Tip Diameter (in) 3.5
Tip Finish Polished/Black anodized
Tip Included Yes
Tip Length (in) 8.5
Tip Material 304 Stainless/Aluminum
Tip Quantity 2
Tip Shape Round
Tip Style Double Wall
USFS Approved Spark Arrestor Yes
Y-Pipes Included No
