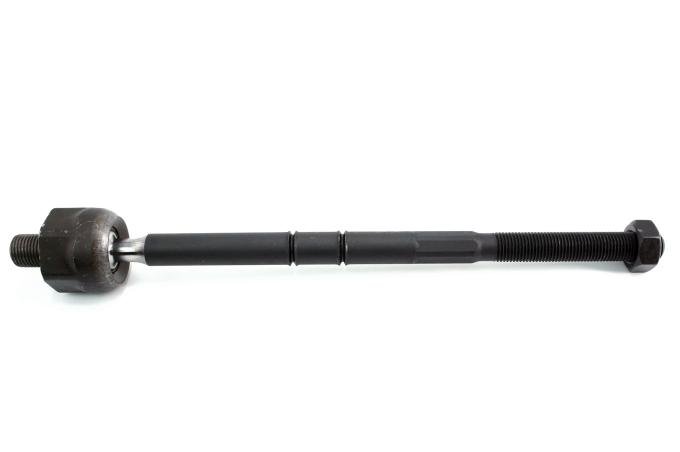

Inner tie rod end (right/left hand) designed for select 2002–2005 Ford and Mercury vehicles. This precision replacement part secures the inner connection between the steering rack and outer tie rod, maintaining accurate steering geometry and vehicle tracking. Built from hardened steel with a corrosion-resistant finish and a durable ball stud, it restores steering feel, reduces play, and helps prevent premature tire wear. Ideal for routine maintenance, steering system repairs, or full suspension restoration projects, this part offers reliable performance and long-term durability with straightforward installation.
Features:
- Fits 2002–2005 Ford Crown Victoria, Mercury Grand Marquis and compatible Panther-platform models (inner tie rod, right or left hand).
- Hardened steel construction for strength and long service life.
- Precision ball stud and socket to restore steering responsiveness and reduce play.
- Corrosion-resistant finish to withstand road exposure and extend component life.
- Direct-fit replacement for OEM restoration and steering repair applications.
- Relatively simple installation for DIY mechanics or professional technicians.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 45-90 minutes
Instructions:
- Park vehicle on level ground, set parking brake, and chock rear wheels.
- Loosen front wheel lug nuts slightly, jack up the front of the vehicle and secure it on jack stands, then remove the front wheel.
- Locate the inner tie rod on the steering rack; mark the position of the outer tie rod on the threaded shaft to preserve alignment settings.
- Loosen the jam nut on the outer tie rod and separate the outer tie rod end from the steering knuckle using a tie rod removal tool or pickle fork.
- Unscrew the outer tie rod from the inner tie rod and note the number of turns or count threads removed for reassembly reference.
- Use an inner tie rod removal tool or appropriate wrench to loosen and remove the inner tie rod from the steering rack.
- Clean the tapers and threads at the steering rack and inspect the rack boot; replace boot if damaged.
- Install the new inner tie rod by threading it into the steering rack to the original depth or per manufacturer torque specs; tighten to the specified torque.
- Reinstall the outer tie rod onto the inner tie rod to the previously noted thread position and tighten the jam nut to secure.
- Reconnect the outer tie rod to the steering knuckle and torque the nut to specification; install a new cotter pin if used.
- Reinstall the wheel, lower the vehicle, and torque lug nuts to specification.
- Have a professional alignment performed after installation to ensure proper steering geometry and prevent uneven tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Ford |
Explorer |
2002 - 2005 |
| Mercury |
Mountaineer |
2002 - 2005 |
