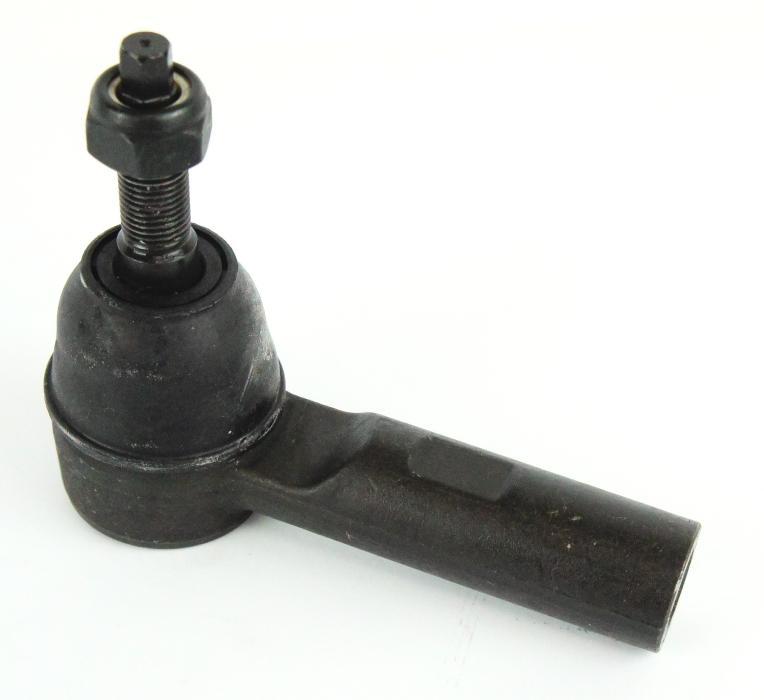

Outer tie rod end for 2005–2012 Ford, Mazda, and Mercury vehicles, designed to replace worn steering linkage and restore precise steering control. This threaded outer tie rod end (compatible with inner-end 14mm thread) fits both right and left-hand orientations and is built to secure the steering knuckle to the inner tie rod while resisting wear and road shock. It provides reliable steering response, improves alignment stability, and helps prevent uneven tire wear. Durable construction and a direct-fit design make this an effective restoration or maintenance part for steering and suspension systems.
Features:
- Fits 2005–2012 Ford, Mazda, and Mercury models (outer tie rod end, right/left hand; inner-end thread 14mm).
- Direct-fit replacement for worn outer tie rod ends to restore steering precision and alignment.
- 14mm inner-end thread for compatibility with factory-style inner tie rods.
- Durable materials and protective coatings resist corrosion and road wear.
- Helps prevent uneven tire wear and reduces steering play and vibration.
- Designed for straightforward installation with common hand tools—ideal for restoration and routine maintenance.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes per side
Instructions:
- Park vehicle on a level surface, engage parking brake and chock rear wheels. Loosen front wheel lug nuts slightly.
- Raise the vehicle with a jack and support securely on jack stands. Remove the front wheel.
- Locate the outer tie rod end at the steering knuckle where it connects to the inner tie rod and steering arm.
- Mark the position of the old tie rod relative to the inner tie rod or measure and record the exposed thread length and number of turns to preserve toe alignment.
- Loosen the jam nut that secures the outer tie rod to the inner tie rod. Do not remove it yet.
- Remove the cotter pin (if present) and loosen the castle nut or retaining nut on the tie rod end stud. Use penetrating oil if components are corroded.
- Separate the tie rod end from the steering knuckle using a tie rod puller or a pickle fork. Avoid excessive damage to surrounding components.
- Unscrew the outer tie rod end from the inner tie rod the recorded number of turns (or to the mark) and remove the old part.
- Thread the new outer tie rod end onto the inner tie rod to the same position or thread count used earlier. Tighten the jam nut against the new outer tie rod end.
- Insert the tie rod stud into the steering knuckle, tighten the retaining nut to the manufacturer's specified torque, and install a new cotter pin if applicable.
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to specification.
- Have a professional alignment performed as soon as possible to ensure proper toe settings and prevent premature tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Ford |
Escape |
2005 - 2012 |
| Mazda |
Tribute |
2008 - 2011 |
| Mercury |
Mariner |
2006 - 2011 |
